TBH1200A0FV0Z00 | 2" PVC TBH Series Ball Valve, FLGD Ends, FPM Seals, Z BALL | Hayward

Brand: HaywardSKU: TBH1200A0FV0Z00

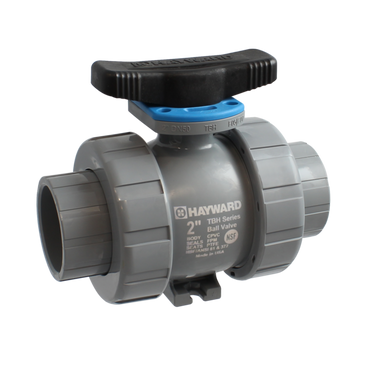

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TBH1200A0FV0Z00

Jump to: Overview & Specifications Reviews

Overview Details for TBH1200A0FV0Z00

2" PVC TBH Series Ball Valve, FLGD Ends, FPM Seals, Z BALL

The TBH-Z Series (Z-Ball) true union ball valves have a drilled ball to vent gases for sodium hypochlorite service. Available in PVC or CPVC materials with FPM O-rings only and PTFE seats. Sizes ½”/DN15 to 6” DN150. All valves are assembled with silicone free lubricant. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – on all sizes. Fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock up to 2”/DN50; sizes 2-1/2” / DN65 – 4” / DN100 are pressure rated for 235psi/PN16 at 70°F non-shock. The TBH-Z is available with IPS, DIN/EN or JIS socket, threaded and flanged end connections for global use. “Patented” & Other Patents Pending” Pat. No.: 11,131,404.

• Integral ISO 5211 Mounting Pad for Easy Actuation
• Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
• Permanent Laser Markings, Eliminates Labels
• System friendly "Molded-In" Footpad for Skid or Panel Mount
• UV Resistant Sure Grip Ergonomic Handle
• FPM or EPDM Seals
• Double O-Ring Stem Seals
• Reversible PTFE Seats - Standard
• Easy Replacement for Existing Hayward TB-Z Series

Specifications

Item Number	TBH1200A0FV0Z00
Brand	Hayward
Body Material	PVC
Category	Thermoplastic Valves
Category	True Union Ball Valves
Chassis Description	Standard Body
Class	TBH Series True Union Ball Valves
Cv Coefficient	150
Cv Coefficient	150.0000
End Connection Material	PVC
End Connection Type	Flanged
End Connection	Flanged
Flow Configuration	Bi-directional
Handle Material	GFPP
Material	PVC
O-Ring Material	FPM
Operating Pressure [Max]	10 bar 150 psi
Operation Type	Manual
Pipe Size	2 in
Pressure Rating	150 PSI
Sealing Material	FPM
Seat Material	PTFE
Series	TBH Series With Z Ball True Union Ball Valves
Series	TBH-Z
Size	2"
Sub Category	Ball Valves
SubCategory	TBH-Z Series "Z-Ball"
Subtype	Ball Valves
Subtype	Industrial Ball Valves
Type	Thermoplastic Valves
Valve Material	PVC
Valve Type	Ball
