TBH1100A0FVK000 | 1" PVC TBH Series Ball Valve, FLGD Ends, FPM Seals, Actuation Ready | Hayward

Brand: HaywardSKU: TBH1100A0FVK000

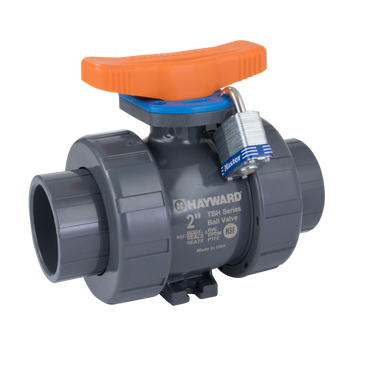

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TBH1100A0FVK000

Jump to: Overview & Specifications Reviews

Overview Details for TBH1100A0FVK000

1" PVC TBH Series Ball Valve, FLGD Ends, FPM Seals, Actuation Ready

The TBH Series features a low maintenance design with its new patent pending System2™ Sealing Technology for sizes up to 2”/DN50. Sizes 2-1/2” through 6” feature have energized PTFE seats with backing O-ring as standard. All seats are reversible to allow easy field rebuild. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – on all sizes. Available in sizes 1/4˝ through 6” / DN15 – DN150 in PVC and CPVC materials. The TBH Series are fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock up to 2”/DN50. Sizes 2-1/2”/DN65 – 4”/DN100 sizes are pressure rated for 235psi at 70°F non-shock. Lastly, the TBH is available with IPS or DIN/EN and JIS socket, threaded and flanged end connections for global use. “Patented” & Other Patents Pending” Pat. No.: 11,131,404.

• Full 250 psi / PN16 Rating up to 2”/DN50 and 235psi/PN16, Non-Shock at 70°F / 23°C.
• Integral ISO 5211 Mounting Pad for Easy Actuation
• Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
• System2™ Sealing Technology Seat Carrier Design for sizes up to 2”/DN50– Patent Pending
• Permanent Laser Markings, Eliminates Labels
• System friendly "Molded-In" Footpad for Skid or Panel Mount
• UV Resistant Sure Grip Ergonomic Handle
• FPM or EPDM Seals
• Double O-Ring Stem Seals
• Reversible PTFE Seats - Standard
• Easy Replacement for Existing Hayward TB Series

Specifications

Item Number	TBH1100A0FVK000
Brand	Hayward
Body Material	PVC
Category	Thermoplastic Valves
Category	True Union Ball Valves
Chassis Description	Standard Body
Class	TBH Series True Union Ball Valves
Cv Coefficient	29
Cv Coefficient	29.0000
End Connection Material	PVC
End Connection Type	Flanged
End Connection	Flanged
Flow Configuration	Bi-directional
Material	PVC
O-Ring Material	FPM
Operating Pressure [Max]	10 bar 150 psi
Operation Type	Actuation Ready
Pipe Size	1 in
Pressure Rating	150 PSI
Sealing Material	FPM
Seat Material	PTFE
Series	TBH
Series	TBH Series True Union Ball Valves
Size	1"
Sub Category	Ball Valves
SubCategory	TBH Series Ball Valves
Subtype	Ball Valves
Subtype	Industrial Ball Valves
Type	Thermoplastic Valves
Valve Material	PVC
Valve Type	Ball
