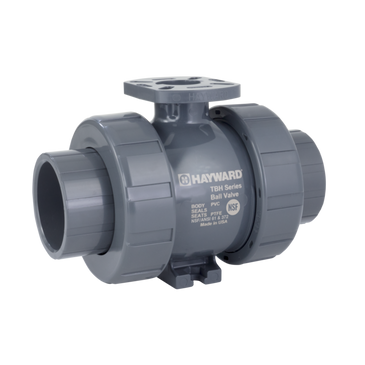

TBH1075A0SEK000 | 3/4" PVC TBH Series Ball Valve, SOC Ends, EPDM Seals, Actuation Ready | Hayward
Overview
Details for TBH1075A0SEK000
3/4" PVC TBH Series Ball Valve, SOC Ends, EPDM Seals, Actuation Ready
The TBH Series features a low maintenance design with its new patent pending System2™ Sealing Technology for sizes up to 2”/DN50. Sizes 2-1/2” through 6” feature have energized PTFE seats with backing O-ring as standard. All seats are reversible to allow easy field rebuild. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – on all sizes. Available in sizes 1/4˝ through 6” / DN15 – DN150 in PVC and CPVC materials. The TBH Series are fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock up to 2”/DN50. Sizes 2-1/2”/DN65 – 4”/DN100 sizes are pressure rated for 235psi at 70°F non-shock. Lastly, the TBH is available with IPS or DIN/EN and JIS socket, threaded and flanged end connections for global use. “Patented” & Other Patents Pending” Pat. No.: 11,131,404.
• Full 250 psi / PN16 Rating up to 2”/DN50 and 235psi/PN16, Non-Shock at 70°F / 23°C.• Integral ISO 5211 Mounting Pad for Easy Actuation
• Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
• System2™ Sealing Technology Seat Carrier Design for sizes up to 2”/DN50– Patent Pending
• Permanent Laser Markings, Eliminates Labels
• System friendly "Molded-In" Footpad for Skid or Panel Mount
• UV Resistant Sure Grip Ergonomic Handle
• FPM or EPDM Seals
• Double O-Ring Stem Seals
• Reversible PTFE Seats - Standard
• Easy Replacement for Existing Hayward TB Series
Specifications
| Item Number | TBH1075A0SEK000 |
| Brand | Hayward |
| Body Material | PVC |
| Category | Thermoplastic Valves |
| Category | True Union Ball Valves |
| Chassis Description | Standard Body |
| Class | TBH Series True Union Ball Valves |
| Cv Coefficient | 16 |
| Cv Coefficient | 16.0000 |
| End Connection Material | PVC |
| End Connection Type | Socket |
| End Connection | Socket |
| Flow Configuration | Bi-directional |
| Material | PVC |
| O-Ring Material | EPDM |
| Operating Pressure [Max] | 16 bar 250 psi |
| Operation Type | Actuation Ready |
| Pipe Size | 3/4 in |
| Pressure Rating | 250 PSI |
| Sealing Material | EPDM |
| Seat Material | PTFE |
| Series | TBH |
| Series | TBH Series True Union Ball Valves |
| Size | 3/4" |
| Sub Category | Ball Valves |
| SubCategory | TBH Series Ball Valves |
| Subtype | Ball Valves |
| Subtype | Industrial Ball Valves |
| Type | Thermoplastic Valves |
| Valve Material | PVC |
| Valve Type | Ball |
