TB5075T | 3/4" PVDF True Union Ball Valve w/FPM o-rings; threaded end connections | Hayward

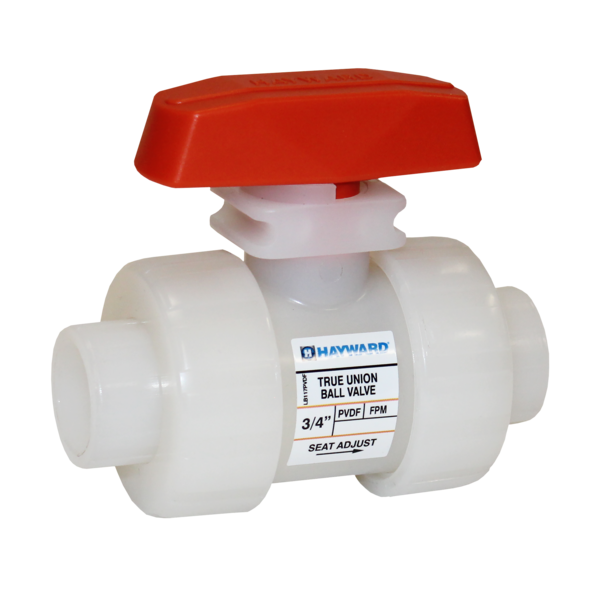

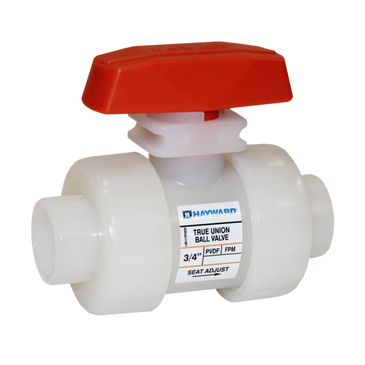

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TB5075T

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward TB5075T Documents

Datasheet More Info

Overview

Details for TB5075T

3/4" PVDF True Union Ball Valve w/FPM o-rings; threaded end connections

TB Series True Union Ball Valves now in PVDF.

• Available in sizes 1/4”-2”
• Threaded or Socket Fusion (IPS) Ends
• Full Port Design
• FPM O-Ring Seals Standard, EPDM upon request
• Reversible PTFE Seats
• Double O-Ring Stem Seals
• Available with Electric or Pneumatic Actuation

Specifications

Item Number	TB5075T
Brand	Hayward
A	4.84 in
B	0.74 in
Body Material	PVDF
C	2.59 in
Category	Thermoplastic Valves
Category	True Union Ball Valves
Class	TB Series PVDF True Union Ball Valves
Cv Coefficient	16
D1	2.98 in
D2	2.77 in
End Connection Type	Threaded
End Connection	Threaded
Flow Configuration	Bi-directional
H	3.00 in
Material	PVDF
Operation Type	Manual
Pipe Size	3/4 in
Pressure Rating Non-Shock	150 psi/ 10 bar
Sealing Material	FPM
Seals	FPM
Series	TB
Size	3/4"
SubCategory	TB Series Ball Valves
Subtype	Industrial Ball Valves
Suby Category	Ball Valves
Valve Type	Ball
