TB5050S | 1/2" PVDF True Union Ball Valve w/FPM o-rings; IPS socket fusion ends | Hayward

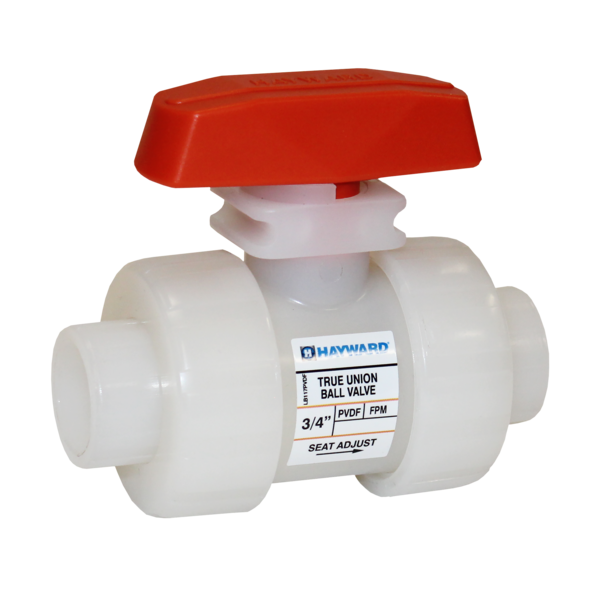

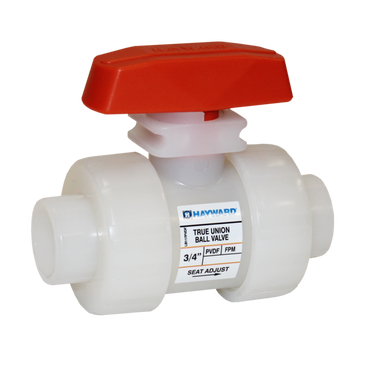

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TB5050S
Overview Details for TB5050S
1/2" PVDF True Union Ball Valve w/FPM o-rings; IPS socket fusion ends
The Hayward RPV Series Pressure Relief valves protect sensitive process equipment from over-pressure situations by maintaining target operating pressure. The RPV Series pressure relief valves are available from 1/4 to 4", with PVC, CPVC, PP and PVDF wetted bodies. The factory set pressure of 50 psi is easily field adjustable between 10 to 150 psi (other pressure ranges are available by request). Backed by Hayward's 3-year warranty, the RPV Series Pressure Relief valves will provide reliable results in your tough Chemfeed applications.
• Available in PVC, CPVC, PP or PVDF Body with Noryl™ Molded Dome
• PTFE/EPDM Diaphragm
• Spring: 10 - 150 psi (Spring pre-set: 50 psi)
• 304 Stainless Steel Bolting
• FNPT Threads
• Adjustment Screw with Slot
• PVC, CPVC and PVDF rated to 250 psi @ 70°F / 17.2 Bar at 21°C, PP rated to 150 psi @ 70°F / 10 Bar at 21°C
Specifications
Item Number | TB5050S |
Brand | Hayward |
A | 4.65 in |
B | 0.49 in |
Body Material | PVDF |
C | 2.23 in |
Category | Thermoplastic Valves |
Category | True Union Ball Valves |
Class | TB Series PVDF True Union Ball Valves |
Cv Coefficient | 8 |
D1 | 2.80 in |
D2 | 2.62 in |
End Connection Type | IPS Socket Fusion |
End Connection | Socket Fusion |
Flow Configuration | Bi-directional |
H | 2.82 in |
Material | PVDF |
Operation Type | Manual |
Pipe Size | 1/2 in |
Pressure Rating Non-Shock | 150 psi/ 10 bar |
Sealing Material | FPM |
Seals | FPM |
Series | TB |
Size | 1/2" |
SubCategory | TB Series Ball Valves |
Subtype | Industrial Ball Valves |
Suby Category | Ball Valves |
Valve Type | Ball |
