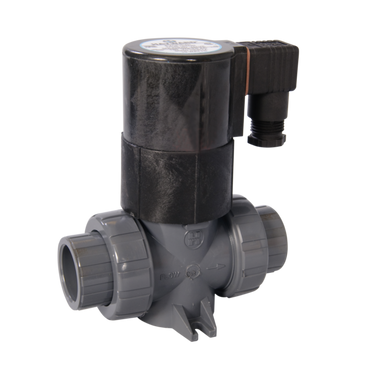

SV20050STE | 1/2" CPVC TU Solenoid Valve w/EPDM Seals | Hayward

Brand: HaywardSKU: SV20050STE

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SV20050STE

Jump to: Overview & Specifications Reviews

Overview Details for SV20050STE

1/2" CPVC TU Solenoid Valve w/EPDM Seals

SV Series solenoid valves are available in PVC, CPVC or PVDF. Seals are FPM or EPDM. All sizes are offered with socket and threaded end connections. Standard voltage is 120 VAC. Specify optional voltage of 12 or 24 VAC/VDC or 220VAC. Normally closed only.

• Available in PVC, CPVC and PVDF
• Corrosion-Resistant Polyester Coil
• No Pressure Differential Required for Operation
• Both 1/2" Conduit or SJ-Type Cord Electrical Connection
• 120 VAC Standard
• Normally Closed Design

Specifications

Item Number	SV20050STE
Brand	Hayward
A	2.25 in
B	5.30 in
Body Material	CPVC
C	6.30 in
Category	Actuation & Controls
Category	Solenoid Valves
Class	SV Series Solenoid Valves
Cv Coefficient	2.3000
Cv Factor	2.3
D	4.60 in
E	1.60 in
End Connection Material	CPVC
End Connection Type	True Union Socket/Threaded
End Connection	Socket/Threaded
F	2.60 in
G	2 in
Material	CPVC
Pipe Size	1/2 in
Pressure Rating	150 PSI
Sealing Material	EPDM
Seals	EPDM
Series	SV Series True Union Solenoid Valves
Size	1/2"
Sub Category	Actuated Valves
SubCategory	Solenoid Valve - SV Series
Subtype	Solenoid Valves
Type	Pressure & Flow Control Valves
Voltage	120 VAC
