RV1200TE | 2" PVC Pressure Relief Valves w/EPDM seals; threaded end connections | Hayward

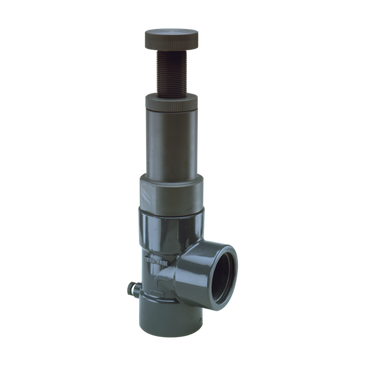

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RV1200TE

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward RV1200TE Documents

Datasheet More Info

Overview

Details for RV1200TE

2" PVC Pressure Relief Valves w/EPDM seals; threaded end connections

Piston style Pressure Relief ideal for high viscosity fluids. Available in size 1/2 in. to 2 in. PVC or CPVC, with threaded or flanged ends. Metric threads available upon request. Choice of FPM or EPDM Seals. Can be set from 5 to 75 psi.

• Available in PVC and CPVC
• Hand Adjustable, No Tools Needed
• Integrally Molded Threaded Gauge Port
• Pressure Relief from 5 PSI to 75 PSI

Specifications

Item Number	RV1200TE
Brand	Hayward
A	15.50 in
B	2.13 in
Body Material	PVC
C	3.00 in
Category	Control Valves
Category	Pressure & Flow Control Valves
Class	RV Series Pressure Relief Valves
D	3.13 in
E	2.88 in
End Connection Type	Threaded
End Connection	Threaded
F	6.69 in
Material	PVC
Pipe Size	2 in
Pressure Rating	150 PSI
Seal	EPDM
Seals	EPDM
Series	RV Series Pressure Relief Valves
Size	2"
Sub Category	Pressure & Chemfeed
SubCategory	Pressure Relief Valves - RV Series
Subtype	Pressure & Chemfeed
Type	Pressure & Flow Control Valves
