PBV3025TPE1 | 1/4" PP Back Pressure Valve 10-150psi w/PTFE/EPDM Diaphragm; NPT | Hayward

Brand: HaywardSKU: PBV3025TPE1

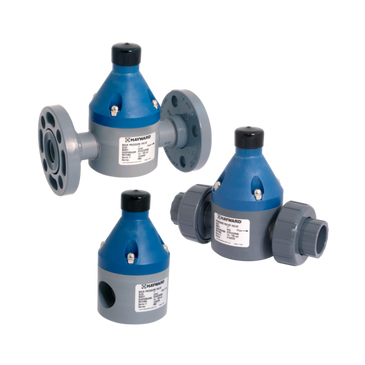

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PBV3025TPE1

Jump to: Overview & Specifications Reviews

Overview Details for PBV3025TPE1

1/4" PP Back Pressure Valve 10-150psi w/PTFE/EPDM Diaphragm; NPT

The Hayward PBV Series Back Pressure Valves enhance the performance of Chemical Feed systems by applying consistent back pressure on metering pumps to produce predictable delivery. The PBV Series also provides an Anti-Siphon function. The PBV Series is available in sizes from 1/4 to 4", with PVC, CPVC, PP and PVDF wetted bodies. The set pressure is factory set at 50 psi but is easily field adjustable between 10 to 150 psi (other pressure ranges are available by request). Backed by Hayward's 3-year warranty, the PBV Series back pressure valves will provide reliable service for your Chemfeed applications.

• Available in PVC, CPVC, PP or PVDF Body with Noryl™ Molded Dome
• PTFE/EPDM Diaphragm
• Spring: 10 - 150 psi (Spring pre-set: 50 psi)
• 304 Stainless Steel Bolting
• FNPT Threads
• Anti-Siphon Function
• Adjustment Screw with Slot
• PVC, CPVC and PVDF rated to 250 psi @ 70°F / 17.2 Bar at 21°C, PP rated to 150 psi @ 70°F / 10 Bar at 21°C

Specifications

Item Number	PBV3025TPE1
Brand	Hayward
Category	Pressure & Flow Control Valves
Class	PBV Series Diaphragm Back Pressure Valves
End Connection Type	FNPT
Material	PP
Pipe Size	1/4 in
Pressure Rating	150 PSI
Seal	EPDM
Series	PBV Series Back Pressure Valves
Sub Category	Pressure & Chemfeed
Subtype	Pressure & Chemfeed
Type	Pressure & Flow Control Valves
