RPV2025TPV1 | 1/4" CPVC Pressure Relief Valve 10-150psi w/PTFE/FPM Diaphragm, NPT Ends | Hayward

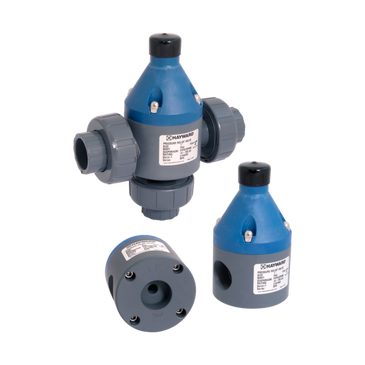

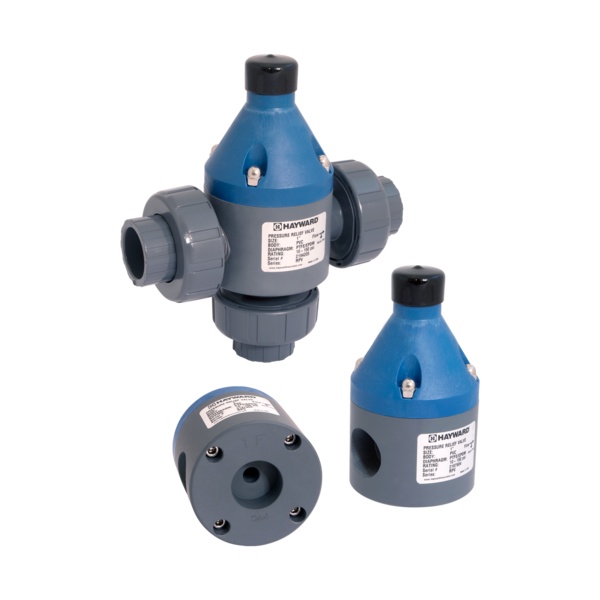

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RPV2025TPV1
Overview Details for RPV2025TPV1
1/4" CPVC Pressure Relief Valve 10-150psi w/PTFE/FPM Diaphragm, NPT Ends
The Hayward RPV Series Pressure Relief valves protect sensitive process equipment from over-pressure situations by maintaining target operating pressure. The RPV Series pressure relief valves are available from 1/4 to 4", with PVC, CPVC, PP and PVDF wetted bodies. The factory set pressure of 50 psi is easily field adjustable between 10 to 150 psi (other pressure ranges are available by request). Backed by Hayward's 3-year warranty, the RPV Series Pressure Relief valves will provide reliable results in your tough Chemfeed applications.
• Available in PVC, CPVC, PP or PVDF Body with Noryl™ Molded Dome
• PTFE/EPDM Diaphragm
• Spring: 10 - 150 psi (Spring pre-set: 50 psi)
• 304 Stainless Steel Bolting
• FNPT Threads
• Adjustment Screw with Slot
• PVC, CPVC and PVDF rated to 250 psi @ 70°F / 17.2 Bar at 21°C, PP rated to 150 psi @ 70°F / 10 Bar at 21°C
Specifications
Item Number | RPV2025TPV1 |
Brand | Hayward |
Category | Pressure & Flow Control Valves |
Class | |
End Connection Type | FNPT |
Material | CPVC |
Pipe Size | 1/4 in |
Pressure Rating | 250 PSI |
Seal | FPM |
Subtype | RPV Series Pressure Relief Valves |
Suby Category | Pressure & Chemfeed |
