RPV1025TPV1 | 1/4" PVC Pressure Relief Valve 10-150psi w/PTFE/FPM Diaphragm, NPT Ends | Hayward

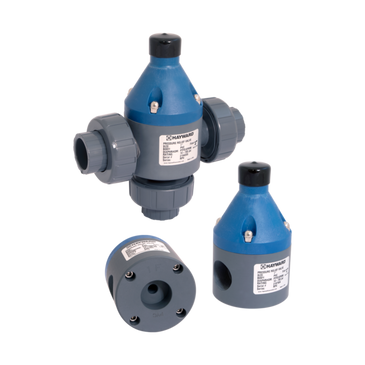

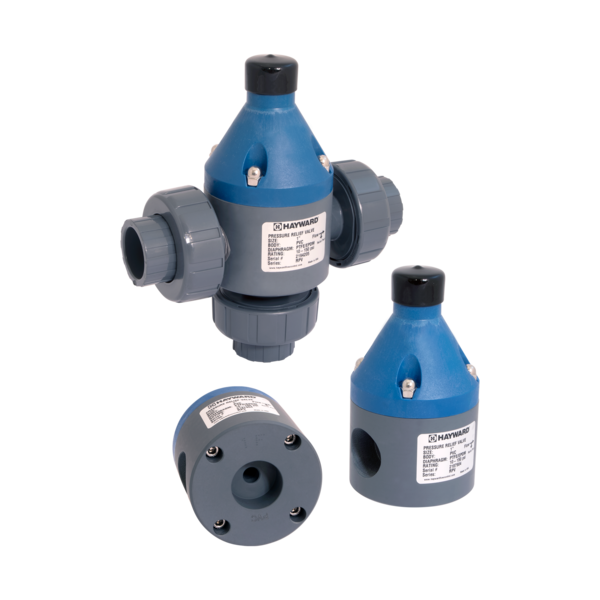

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RPV1025TPV1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward RPV1025TPV1 Documents

Datasheet More Info

Overview

Details for RPV1025TPV1

1/4" PVC Pressure Relief Valve 10-150psi w/PTFE/FPM Diaphragm, NPT Ends

The Hayward PBV Series Back Pressure Valves enhance the performance of Chemical Feed systems by applying consistent back pressure on metering pumps to produce predictable delivery. The PBV Series also provides an Anti-Siphon function. The PBV Series is available in sizes from 1/4 to 4", with PVC, CPVC, PP and PVDF wetted bodies. The set pressure is factory set at 50 psi but is easily field adjustable between 10 to 150 psi (other pressure ranges are available by request). Backed by Hayward's 3-year warranty, the PBV Series back pressure valves will provide reliable service for your Chemfeed applications.

• Available in PVC, CPVC, PP or PVDF Body with Noryl™ Molded Dome
• PTFE/EPDM Diaphragm
• Spring: 10 - 150 psi (Spring pre-set: 50 psi)
• 304 Stainless Steel Bolting
• FNPT Threads
• Anti-Siphon Function
• Adjustment Screw with Slot
• PVC, CPVC and PVDF rated to 250 psi @ 70°F / 17.2 Bar at 21°C, PP rated to 150 psi @ 70°F / 10 Bar at 21°C

Specifications

Item Number	RPV1025TPV1
Brand	Hayward
Category	Pressure & Flow Control Valves
Class
End Connection Type	FNPT
Material	PVC
Pipe Size	1/4 in
Pressure Rating	250 PSI
Seal	FPM
Subtype	RPV Series Pressure Relief Valves
Suby Category	Pressure & Chemfeed
