PBV2400FPV1 | 4" CPVC Back Pressure Valve 10-150psi w/PTFE/FPM Diaphragm FLGD Ends | Hayward

Hayward | PBV2400FPV1

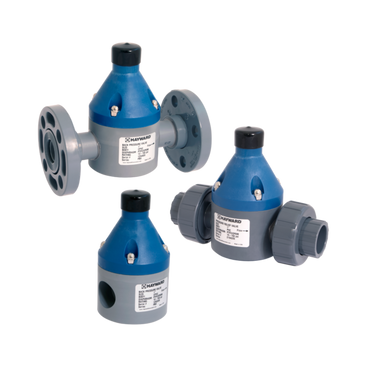

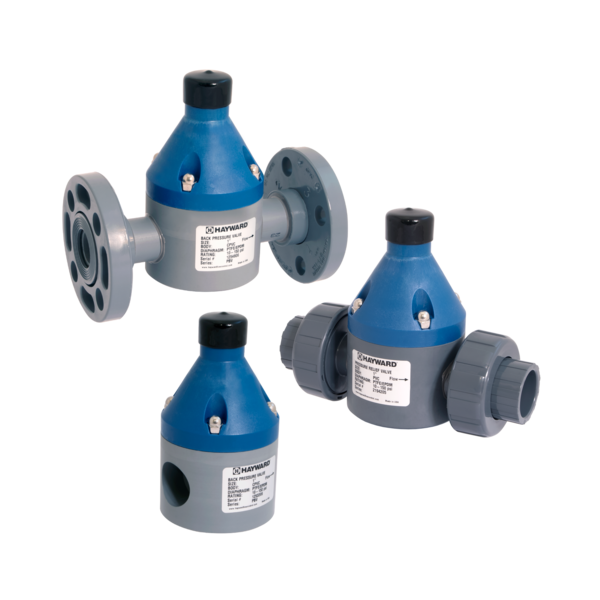

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PBV2400FPV1

Documents and manuals

Hayward PBV2400FPV1 Documents

Overview

Details for PBV2400FPV1

4" CPVC Back Pressure Valve 10-150psi w/PTFE/FPM Diaphragm FLGD Ends

The Hayward PBV Series Back Pressure Valves enhance the performance of Chemical Feed systems by applying consistent back pressure on metering pumps to produce predictable delivery. The PBV Series also provides an Anti-Siphon function. The PBV Series is available in sizes from 1/4 to 4", with PVC, CPVC, PP and PVDF wetted bodies. The set pressure is factory set at 50 psi but is easily field adjustable between 10 to 150 psi (other pressure ranges are available by request). Backed by Hayward's 3-year warranty, the PBV Series back pressure valves will provide reliable service for your Chemfeed applications.


• Available in PVC, CPVC, PP or PVDF Body with Noryl™ Molded Dome
• PTFE/EPDM Diaphragm
• Spring: 10 - 150 psi (Spring pre-set: 50 psi)
• 304 Stainless Steel Bolting
• FNPT Threads
• Anti-Siphon Function
• Adjustment Screw with Slot
• PVC, CPVC and PVDF rated to 250 psi @ 70°F / 17.2 Bar at 21°C, PP rated to 150 psi @ 70°F / 10 Bar at 21°C

Specifications

Item Number PBV2400FPV1
Brand Hayward
Category Pressure & Flow Control Valves
Class
End Connection Type Flanged
Material CPVC
Pipe Size 4 in
Pressure Rating 250 PSI
Seal FPM
Subtype PBV Series Back Pressure Valves
Suby Category Pressure & Chemfeed
