Documents: NVA2050T

Datasheet More Info

NVA2050T | 1/2" CPVC Needle Valves w/FPM o-ring; PTFE seat; threaded end connections | Hayward

Brand: HaywardSKU: NVA2050T

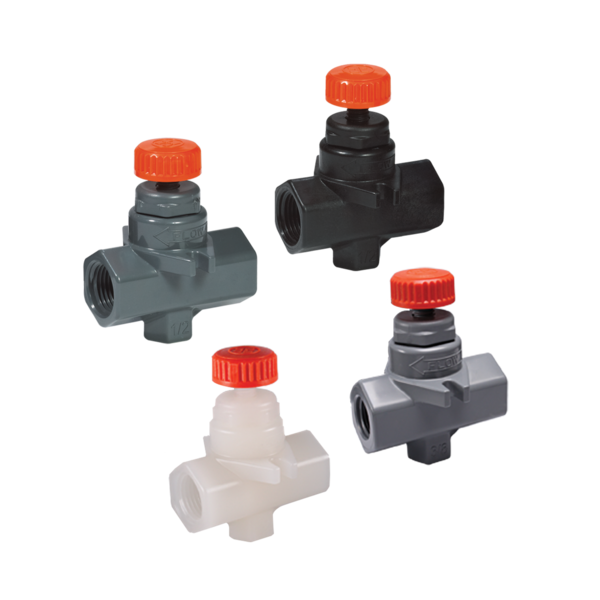

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NVA2050T

Jump to: Overview & Specifications Reviews

Overview Details for NVA2050T

1/2" CPVC Needle Valves w/FPM o-ring; PTFE seat; threaded end connections

Available in PVC, CPVC, GFPP and PVDF materials and construction. The NVA Series features an integrated stem with a PTFE seat for superior control, purity and performance. Sizes range from 1/4 in. (DN8) to 1/2 in. (DN10). FPM Seals are standard. All valves carry a pressure rating of 150 psi / 10 bar Non-Shock at 70ºF.

• Available in PVC, CPVC, GFPP and PVDF
• Integrated Stem/PTFE Seat Design
• Flanges for Panel Mounting
• NPT Threaded Ends
• Accurate Flow Control
• Fine Pitch Stem Threads for Precise Adjustment
• Adjust Flow Rates Down to Drops per Minute
• Ideal for Metering Flow

Specifications

Item Number	NVA2050T
Brand	Hayward
A	2.5 in
B	1.19 in
Body Material	CPVC
C	1.44 in
Category	Control Valves
Category	Pressure & Flow Control Valves
Class	NVA Series Needle Valves
D	2.50 in
E	1.06 in
End Connection Type	Threaded
End Connection	Threaded
F	1.25 in
G	0.81 in
Material	CPVC
Pipe Size	1/2 in
Pressure Rating	150 PSI
Seal	FPM
Seals	FPM
Seats	PTFE
Series	NVA Series Needle Valves
Size	1/2"
Sub Category	Flow Control Valves
SubCategory	Needle Valves - NVA Series
Subtype	Flow Control Valves
Type	Pressure & Flow Control Valves
