Documents: NVA1037T

NVA1037T | 3/8" PVC Needle Valves w/FPM o-ring; PTFE seat; threaded end connections | Hayward

Brand: HaywardSKU: NVA1037T
Hayward | NVA1037T

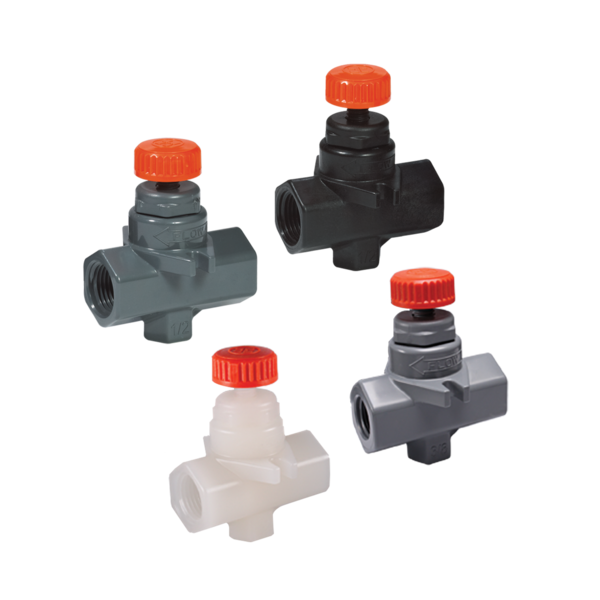

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NVA1037T

Overview Details for NVA1037T

3/8" PVC Needle Valves w/FPM o-ring; PTFE seat; threaded end connections

Available in PVC, CPVC, GFPP and PVDF materials and construction. The NVA Series features an integrated stem with a PTFE seat for superior control, purity and performance. Sizes range from 1/4 in. (DN8) to 1/2 in. (DN10). FPM Seals are standard. All valves carry a pressure rating of 150 psi / 10 bar Non-Shock at 70ºF.

• Available in PVC, CPVC, GFPP and PVDF
• Integrated Stem/PTFE Seat Design
• Flanges for Panel Mounting
• NPT Threaded Ends
• Accurate Flow Control
• Fine Pitch Stem Threads for Precise Adjustment
• Adjust Flow Rates Down to Drops per Minute
• Ideal for Metering Flow

Specifications

Item Number NVA1037T
Brand Hayward
A 2.5 in
B 1.19 in
Body Material PVC
C 1.44 in
Category Control Valves
Category Pressure & Flow Control Valves
Class NVA Series Needle Valves
D 2.50 in
E 1.06 in
End Connection Type Threaded
End Connection Threaded
F 1.25 in
G 0.81 in
Material PVC
Pipe Size 3/8 in
Pressure Rating 150 PSI
Seal FPM
Seals FPM
Seats PTFE
Series NVA Series Needle Valves
Size 3/8"
Sub Category Flow Control Valves
SubCategory Needle Valves - NVA Series
Subtype Flow Control Valves
Type Pressure & Flow Control Valves
