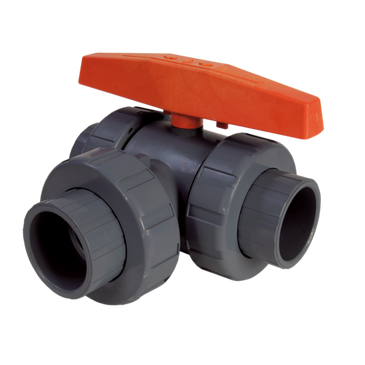

LA1250T | 2-1/2" PVC 3-Way Lateral True Union Ball Valves w/FPM o-rings; threaded end connections | Hayward

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LA1250T

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward LA1250T Documents

Datasheet More Info

Overview

Details for LA1250T

2-1/2" PVC 3-Way Lateral True Union Ball Valves w/FPM o-rings; threaded end connections

LA Series lateral 3-way ball valves are available in PVC and CPVC. O-rings are FPM or EPDM and seats are PTFE. Up to 2 in. sizes have socket and threaded end connections. All valves are assembled with silicone free lubricant.

• Available in PVC and CPVC
• PTFE Seats
• FPM or EPDM O-Rings
• Double O-Ring Stem Seal
• Simplifies Lateral Connections
• Replaces Valve/Tee
Connection Combinations
• Quick, Easy to Install
• Replacement for Zero Dead-Leg Valves

Specifications

Item Number	LA1250T
Brand	Hayward
A	6.40 in
B	5.90 in
Body Ball Material	PVC / Standard Ball
Body Material	PVC
C	7.59 in
Category	Thermoplastic Valves
Category	True Union Ball Valves
Chassis Description	Standard Body
Class	LA Series Three Way Ball Valves
E	10.50 in
End Connection Type	Threaded
End Connection	Threaded
F	8.68 in
G	15.92 in
H	5.35 in
Operation Type	Manual
Pipe Size	2-1/2 in
Sealing Material	FPM
Seals	FPM
Series	LA Series Lateral Three Way True Union Ball Valves
Size	2-1/2"
Sub Category	Ball Valves
SubCategory	3-Way Lateral Ball Valves - LA Series
Subtype	Ball Valves
Subtype	Three Way True Union Ball Valves
Type	Thermoplastic Valves
