IV5075T04BV | IV Series 3/4" Injection Valve, PVDF, NPT, FPM | Hayward

Brand: HaywardSKU: IV5075T04BV

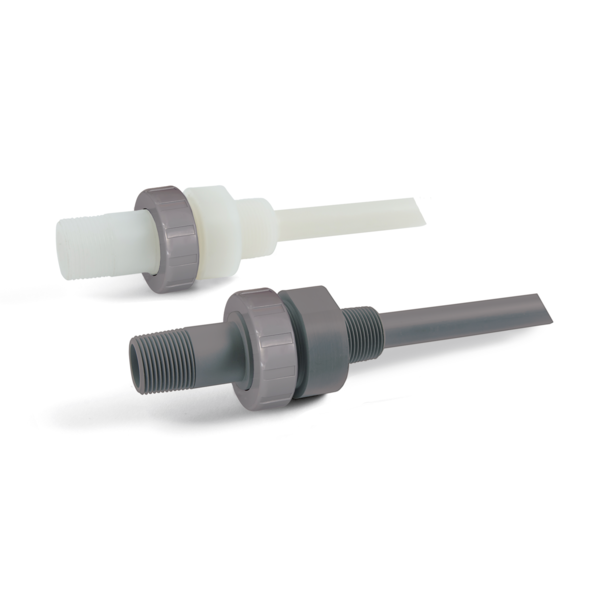

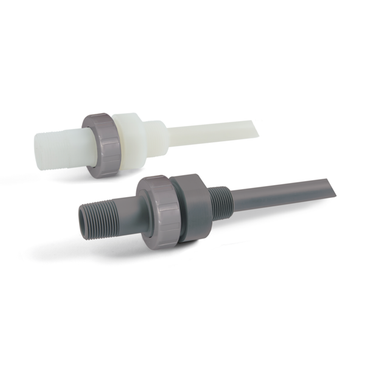

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IV5075T04BV

Jump to: Overview & Specifications Reviews

Overview Details for IV5075T04BV

IV Series 3/4" Injection Valve, PVDF, NPT, FPM

The IV Series Injection Valves ensure that chemical feed systems inject into the center of a process stream for better mixing and to prevent corrosion inside the process pipe. The check valve prevents the process fluid from going back up the chemical line. 45° Bevel. EPDM seals optional.

• Built-in ball check valve with Hastelloy C™ spring, with the IV check being rebuildable
• Threaded MNPT End Connections
• FPM O-Ring Seals
• 45° Bevel on Quill Tip
• Pressure rated to 150 psi @ 70°F

Specifications

Item Number	IV5075T04BV
Brand	Hayward
Body Material	PVDF
Category	Pressure & Flow Control Valves
Class	IV Series Injection Valves
End Connection Type	MNPT
Pipe Size	3/4 in
Pressure Rating	150 PSI
Sealing Material	FPM
Series	IV Series Injection Valves
Sub Category	Pressure & Chemfeed
Subtype	Pressure & Chemfeed
Type	Pressure & Flow Control Valves
