IV1200T06BV | IV Series 2" Injection Valve, PVC, NPT, FPM | Hayward

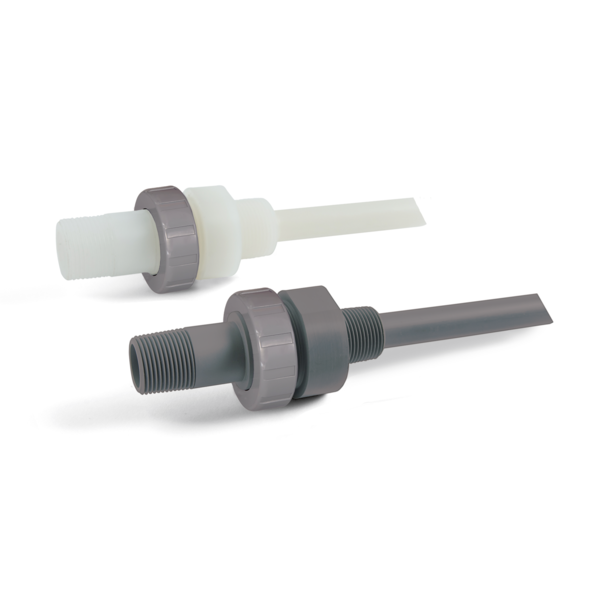

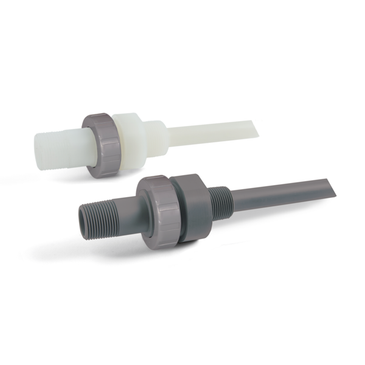

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IV1200T06BV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward IV1200T06BV Documents

Datasheet More Info

Overview

Details for IV1200T06BV

IV Series 2" Injection Valve, PVC, NPT, FPM

The IV Series Injection Valves ensure that chemical feed systems inject into the center of a process stream for better mixing and to prevent corrosion inside the process pipe. The check valve prevents the process fluid from going back up the chemical line. 45° Bevel. EPDM seals optional.

• Built-in ball check valve with Hastelloy C™ spring, with the IV check being rebuildable
• Threaded MNPT End Connections
• FPM O-Ring Seals
• 45° Bevel on Quill Tip
• Pressure rated to 150 psi @ 70°F

Specifications

Item Number	IV1200T06BV
Brand	Hayward
Body Material	PVC
Category	Pressure & Flow Control Valves
Class	IV Series Injection Valves
End Connection Type	MNPT
Pipe Size	2 in
Pressure Rating	150 PSI
Sealing Material	FPM
Series	IV Series Injection Valves
Sub Category	Pressure & Chemfeed
Subtype	Pressure & Chemfeed
Type	Pressure & Flow Control Valves
