GG225X50 | 1/4" X 1/2" CPVC Gauge Guard w/FPM diaphragm | Hayward

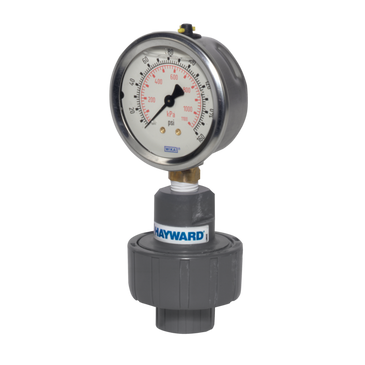

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GG225X50

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward GG225X50 Documents

More Info

Overview

Details for GG225X50

1/4" X 1/2" CPVC Gauge Guard w/FPM diaphragm

GG Series guards are available in PVC, CPVC, PP and PVDF. All guards have an FPM diaphragm. Gauges are offered in 0 to 30 PSI, 0 to 60 PSI, 0 to 160 PSI, and a stainless steel gauge of 0 to 160 PSI. Gauges and guards can be separate or mounted together.

• Available in PVC, CPVC, PP and PVDF
• Threaded NPT Connections
• FPM Membrane
• All Thermoplastic, No Rust or Corrosion
• No Metal Fasteners
• Rugged, Low Profile, Compact Design
• Work in any Position
• Dual Face Scale

Specifications

Item Number	GG225X50
Brand	Hayward
A	3.00 in
B	1/4 NPT
Body Material	CPVC
C	2.69 in
Category	Accessories
Category	Instrumentation
Class	GG Series Gauges & Guards
Configuration	Gauge Guard Only
D	0.61 in
Diaphragm Material	FPM
E	2.25 in
F	2.30 in
G	1/2 in
Gauge Scale	0-150 PSI
Gauge Size	1/4" x 1/2"
Material	CPVC
Seal	FPM
Series	GG Series Gauges and Gauge Guards
Size	1/4" x 1/2"
Sub Category	Gauges & Guards
SubCategory	Gauge Guards - GG Series
Subtype	Thermoplastic Pressure Gauges
Type	Instrumentation
