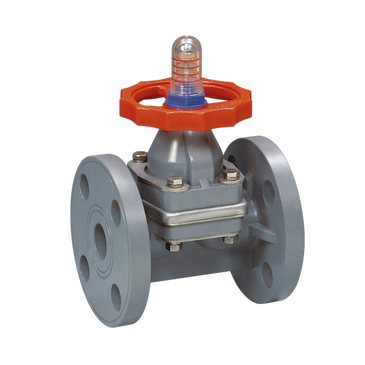

DAB2025FPK | 2-1/2" CPVC Diaphragm Valve w/PTFE Diaphragm; flanged end connections | Hayward

Hayward | DAB2025FPK
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DAB2025FPK

Documents and manuals

Hayward DAB2025FPK Documents

Overview

Details for DAB2025FPK

2-1/2" CPVC Diaphragm Valve w/PTFE Diaphragm; flanged end connections

The DAB Series Diaphragm Valves are available in sizes 1/2 in. – 6 in., with PVC and CPVC. Possible end connections are true-union socket or threaded and flanged ends. All DAB Series feature a highly visible beacon indicator. Possible diaphragm materials are EPDM, FPM and PTFE. PVDF vapor barrier available upon request for EPDM and PTFE diaphragms. The DAB Series are also available with pneumatic actuation.

• Available in PVC and CPVC
• Position Indicator
• Sure-Grip Handwheel
• Choice of FPM, EPDM or PTFE Diaphragms

Specifications

Item Number DAB2025FPK
Brand Hayward
Category Pressure & Flow Control Valves
Class DAB Series Diaphragm Valves
Cv Coefficient 80.0000
Diaphragm Material PTFE/EPDM
End Connection Type Flanged
Material CPVC
Pipe Size 2-1/2 in
Pressure Rating 150 PSI
Sealing Material N/A
Series DAB Series Diaphragm Valves
Sub Category Flow Control Valves
Subtype Flow Control Valves
Type Pressure & Flow Control Valves
Valve Type Diaphragm Valve
