DAB2012UFF | 1-1/4" CPVC Diaphragm Valve w/FPM Diaphragm; FPM Seals; socket/threaded end connections | Hayward

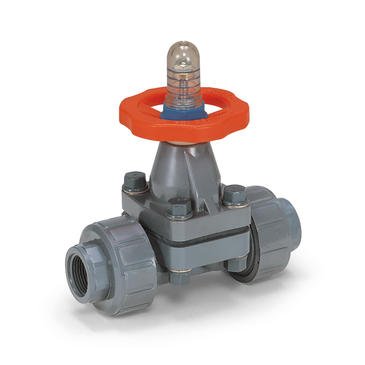

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DAB2012UFF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward DAB2012UFF Documents

Datasheet More Info

Overview

Details for DAB2012UFF

1-1/4" CPVC Diaphragm Valve w/FPM Diaphragm; FPM Seals; socket/threaded end connections

The DAB Series Diaphragm Valves are available in sizes 1/2 in. – 6 in., with PVC and CPVC. Possible end connections are true-union socket or threaded and flanged ends. All DAB Series feature a highly visible beacon indicator. Possible diaphragm materials are EPDM, FPM and PTFE. PVDF vapor barrier available upon request for EPDM and PTFE diaphragms. The DAB Series are also available with pneumatic actuation.

• Available in PVC and CPVC
• Position Indicator
• Sure-Grip Handwheel
• Choice of FPM, EPDM or PTFE Diaphragms

Specifications

Item Number	DAB2012UFF
Brand	Hayward
Body Material	CPVC
Category	Control Valves
Category	Pressure & Flow Control Valves
Class	DAB Series Diaphragm Valves
Cv Coefficient	18.0000
d1	1.91 in
d2	1-1/4-11.5 NPT
Diaphragm Material	FPM
End Connection Type	True Union Socket/Threaded
End Connection	Socket/Threaded
H	7.67 in
L	11.22 in
Material	CPVC
Pipe Size	1-1/4 in
Pressure Rating	150 PSI
Sealing Material	FPM
Seals	FPM
Series	DAB Series Diaphragm Valves
Size	1-1/4"
Sub Category	Flow Control Valves
SubCategory	Diaphragm Valves - DAB Series
Subtype	Flow Control Valves
Type	Pressure & Flow Control Valves
Valve Type	Diaphragm Valve
