DAB2007UEE | 3/4" CPVC Diaphragm Valve w/EPDM Diaphragm; EPDM Seals; socket/threaded end connections | Hayward

Hayward | DAB2007UEE

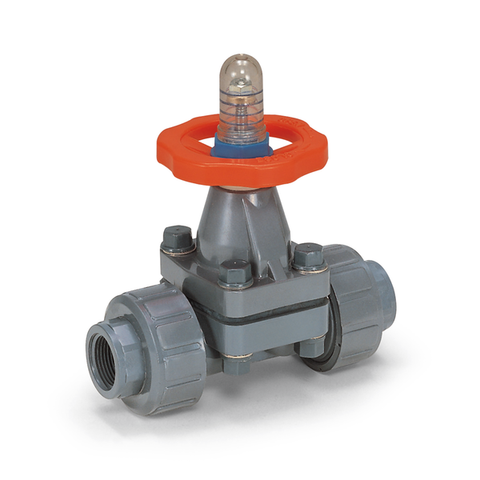

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DAB2007UEE

Documents and manuals

Hayward DAB2007UEE Documents

Overview

Details for DAB2007UEE

3/4" CPVC Diaphragm Valve w/EPDM Diaphragm; EPDM Seals; socket/threaded end connections

The DAB Series Diaphragm Valves are available in sizes 1/2 in. – 6 in., with PVC and CPVC. Possible end connections are true-union socket or threaded and flanged ends. All DAB Series feature a highly visible beacon indicator. Possible diaphragm materials are EPDM, FPM and PTFE. PVDF vapor barrier available upon request for EPDM and PTFE diaphragms. The DAB Series are also available with pneumatic actuation.

• Available in PVC and CPVC
• Position Indicator
• Sure-Grip Handwheel
• Choice of FPM, EPDM or PTFE Diaphragms

Specifications

Item Number DAB2007UEE
Brand Hayward
Body Material CPVC
Category Control Valves
Category Pressure & Flow Control Valves
Class DAB Series Diaphragm Valves
Cv Coefficient 8.0000
d1 1.06 in
d2 3/4-14 NPT
Diaphragm Material EPDM
End Connection Type True Union Socket/Threaded
End Connection Socket/Threaded
H 3.94 in
L 6.69 in
Material CPVC
Pipe Size 3/4 in
Pressure Rating 150 PSI
Sealing Material EPDM
Seals EPDM
Series DAB Series Diaphragm Valves
Size 3/4"
Sub Category Flow Control Valves
SubCategory Diaphragm Valves - DAB Series
Subtype Flow Control Valves
Type Pressure & Flow Control Valves
Valve Type Diaphragm Valve
