Documents: DAB1020FFK

Datasheet More Info

DAB1020FFK | 2" PVC Diaphragm Valve w/FPM Diaphragm; flanged end connections | Hayward

Brand: HaywardSKU: DAB1020FFK

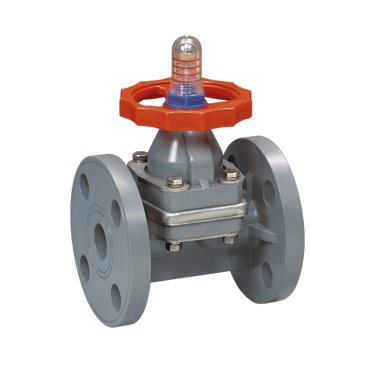

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DAB1020FFK

Jump to: Overview & Specifications Reviews

Overview Details for DAB1020FFK

2" PVC Diaphragm Valve w/FPM Diaphragm; flanged end connections

The DAB Series Diaphragm Valves are available in sizes 1/2 in. – 6 in., with PVC and CPVC. Possible end connections are true-union socket or threaded and flanged ends. All DAB Series feature a highly visible beacon indicator. Possible diaphragm materials are EPDM, FPM and PTFE. PVDF vapor barrier available upon request for EPDM and PTFE diaphragms. The DAB Series are also available with pneumatic actuation.

• Available in PVC and CPVC
• Position Indicator
• Sure-Grip Handwheel
• Choice of FPM, EPDM or PTFE Diaphragms

Specifications

Item Number	DAB1020FFK
Brand	Hayward
Category	Pressure & Flow Control Valves
Class	DAB Series Diaphragm Valves
Cv Coefficient	56.0000
Diaphragm Material	FPM
End Connection Type	Flanged
Material	PVC
Pipe Size	2 in
Pressure Rating	150 PSI
Sealing Material	N/A
Series	DAB Series Diaphragm Valves
Sub Category	Flow Control Valves
Subtype	Flow Control Valves
Type	Pressure & Flow Control Valves
Valve Type	Diaphragm Valve
