Documents: CVH2050ASTEKA00

Datasheet More Info

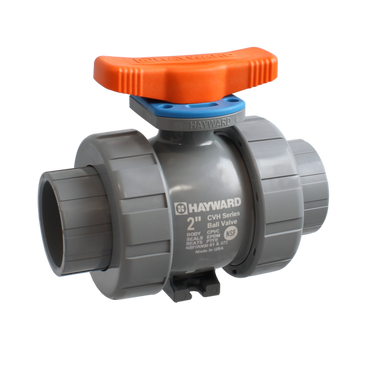

CVH2050ASTEKA00 | 1/2" CPVC CVH Series Ball Valve, Profile2 Ball, SOC/THD Ends, EPDM Seals, Actuation Ready | Hayward

Brand: HaywardSKU: CVH2050ASTEKA00

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CVH2050ASTEKA00

Jump to: Overview & Specifications Reviews

Overview Details for CVH2050ASTEKA00

1/2" CPVC CVH Series Ball Valve, Profile2 Ball, SOC/THD Ends, EPDM Seals, Actuation Ready

The CVH Series Profile2™ with characterized ball for proportional flow configurations. Provides two linear flow curves – one for fast opening, one for slow opening. Features a low maintenance design with its new patent pending System2™ Sealing Technology for sizes up to 2”/DN50. Available in PVC and CPVC materials with FPM or EPDM seals. Slow opening shipped standard. Fast open on request. Sizes are 1/2"/DN15 to 4"/DN100 with IPS, DIN/EN or JIS socket, threaded and flanged end connections. All valves are assembled with silicone free lubricant. “Patented” & Other Patents Pending” Pat. No.: 11,131,404.

• Profile2™ Characterized Ball Design
• Integral ISO 5211 Mounting Pad for Easy Actuation
• Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
• System2™ Sealing Technology Seat Carrier Design up to 2”/DN50 – Patent Pending
• Permanent Laser Markings, Eliminates Labels
• System friendly "Molded-In" Footpad for Skid or Panel Mount
• UV Resistant Sure Grip Ergonomic Handle
• FPM or EPDM Seals
• Double O-Ring Stem Seals
• Reversible PTFE Seats - Standard
• Easy Replacement for Existing Hayward CV Series

Specifications

Item Number	CVH2050ASTEKA00
Brand	Hayward
Category	Thermoplastic Valves
Category	True Union Ball Valves
Chassis Description	Standard Body
Class	CVH Series Profile2™ True Union Ball Valves
Cv Coefficient	8
Cv Coefficient	8.0000
End Connection Type	Socket/Threaded
End Connection	Socket/Threaded
Flow Configuration	Bi-directional
Material	CPVC
O-Ring Material	EPDM
Operating Pressure [Max]	250 psi
Operation Type	Actuation Ready
Pipe Size	1/2 in
Pressure Rating	250 PSI
Sealing Material	EPDM
Seat Material	PTFE
Series	CVH
Series	CVH Series Profile2 Proportional Control Ball Valves
Size	1/2"
Sub Category	Ball Valves
SubCategory	CVH Series Profile 2 – Proportional Control
Subtype	Ball Valves
Subtype	Industrial Ball Valves
Type	Thermoplastic Valves
Valve Material	CPVC
Valve Type	Ball
