CVH1300A0TEKA00 | 3" PVC CVH Series Ball Valve, Profile2 Ball, THD Ends, EPDM Seals, Actuation Ready | Hayward

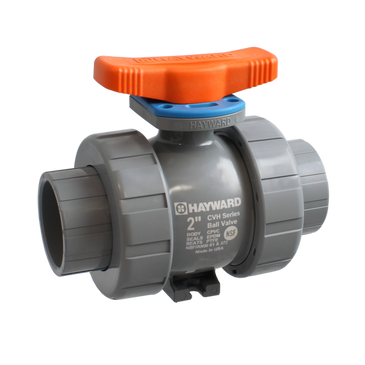

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CVH1300A0TEKA00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward CVH1300A0TEKA00 Documents

Datasheet More Info

Overview

Details for CVH1300A0TEKA00

3" PVC CVH Series Ball Valve, Profile2 Ball, THD Ends, EPDM Seals, Actuation Ready

The CVH Series Profile2™ with characterized ball for proportional flow configurations. Provides two linear flow curves – one for fast opening, one for slow opening. Features a low maintenance design with its new patent pending System2™ Sealing Technology for sizes up to 2”/DN50. Available in PVC and CPVC materials with FPM or EPDM seals. Slow opening shipped standard. Fast open on request. Sizes are 1/2"/DN15 to 4"/DN100 with IPS, DIN/EN or JIS socket, threaded and flanged end connections. All valves are assembled with silicone free lubricant. “Patented” & Other Patents Pending” Pat. No.: 11,131,404.

• Profile2™ Characterized Ball Design
• Integral ISO 5211 Mounting Pad for Easy Actuation
• Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
• System2™ Sealing Technology Seat Carrier Design up to 2”/DN50 – Patent Pending
• Permanent Laser Markings, Eliminates Labels
• System friendly "Molded-In" Footpad for Skid or Panel Mount
• UV Resistant Sure Grip Ergonomic Handle
• FPM or EPDM Seals
• Double O-Ring Stem Seals
• Reversible PTFE Seats - Standard
• Easy Replacement for Existing Hayward CV Series

Specifications

Item Number	CVH1300A0TEKA00
Brand	Hayward
Category	Thermoplastic Valves
Category	True Union Ball Valves
Chassis Description	Large Diameter Body
Class	CVH Series Profile2™ True Union Ball Valves
Cv Coefficient	490
Cv Coefficient	490.0000
End Connection Type	Threaded
End Connection	Threaded
Flow Configuration	Bi-directional
Material	PVC
O-Ring Material	EPDM
Operating Pressure [Max]	235 psi
Operation Type	Actuation Ready
Pipe Size	3 in
Pressure Rating	235 PSI
Sealing Material	EPDM
Seat Material	PTFE
Series	CVH
Series	CVH Series Profile2 Proportional Control Ball Valves
Size	3"
Sub Category	Ball Valves
SubCategory	CVH Series Profile 2 – Proportional Control
Subtype	Ball Valves
Subtype	Industrial Ball Valves
Type	Thermoplastic Valves
Valve Material	PVC
Valve Type	Ball
