CVH1100A0FV0A00 | 1" PVC CVH Series Ball Valve, Profile2 Ball, FLGD Ends, FPM Seals | Hayward

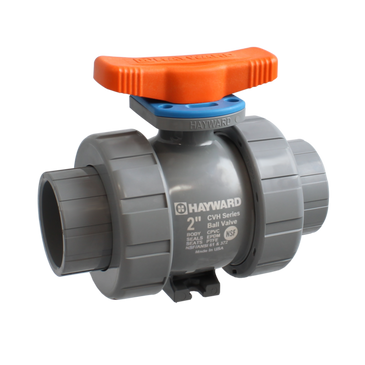

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CVH1100A0FV0A00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward CVH1100A0FV0A00 Documents

Datasheet More Info

Overview

Details for CVH1100A0FV0A00

1" PVC CVH Series Ball Valve, Profile2 Ball, FLGD Ends, FPM Seals

The CVH Series Profile2™ with characterized ball for proportional flow configurations. Provides two linear flow curves – one for fast opening, one for slow opening. Features a low maintenance design with its new patent pending System2™ Sealing Technology for sizes up to 2”/DN50. Available in PVC and CPVC materials with FPM or EPDM seals. Slow opening shipped standard. Fast open on request. Sizes are 1/2"/DN15 to 4"/DN100 with IPS, DIN/EN or JIS socket, threaded and flanged end connections. All valves are assembled with silicone free lubricant. “Patented” & Other Patents Pending” Pat. No.: 11,131,404.

• Profile2™ Characterized Ball Design
• Integral ISO 5211 Mounting Pad for Easy Actuation
• Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
• System2™ Sealing Technology Seat Carrier Design up to 2”/DN50 – Patent Pending
• Permanent Laser Markings, Eliminates Labels
• System friendly "Molded-In" Footpad for Skid or Panel Mount
• UV Resistant Sure Grip Ergonomic Handle
• FPM or EPDM Seals
• Double O-Ring Stem Seals
• Reversible PTFE Seats - Standard
• Easy Replacement for Existing Hayward CV Series

Specifications

Item Number	CVH1100A0FV0A00
Brand	Hayward
Body Material	PVC
Category	Thermoplastic Valves
Category	True Union Ball Valves
Chassis Description	Standard Body
Class	CVH Series Profile2™ True Union Ball Valves
Cv Coefficient	29
Cv Coefficient	29.0000
End Connection Material	PVC
End Connection Type	Flanged
End Connection	Flanged
Flow Configuration	Bi-directional
Handle Material	GFPP
Material	PVC
O-Ring Material	FPM
Operating Pressure [Max]	150 psi
Operation Type	Manual
Pipe Size	1 in
Pressure Rating	150 PSI
Sealing Material	FPM
Seat Material	PTFE
Series	CVH
Series	CVH Series Profile2 Proportional Control Ball Valves
Size	1"
Sub Category	Ball Valves
SubCategory	CVH Series Profile 2 – Proportional Control
Subtype	Ball Valves
Subtype	Industrial Ball Valves
Type	Thermoplastic Valves
Valve Material	PVC
Valve Type	Ball
