CS11100T06BV1 | CS Series 1" Corporation Stop, PVC, TU Socket, FPM, PVC Quill | Hayward

Brand: HaywardSKU: CS11100T06BV1

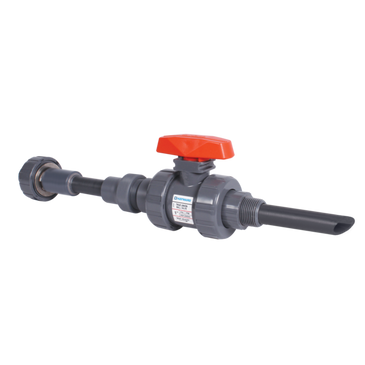

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CS11100T06BV1

Jump to: Overview & Specifications Reviews

Overview Details for CS11100T06BV1

CS Series 1" Corporation Stop, PVC, TU Socket, FPM, PVC Quill

Ensures that chemical feed systems inject into the center of a process stream for better mixing and to prevent corrosion inside the process pipe. The integral check valve prevents the process fluid from going back up the chemical line. Quill with 45° Bevel. EPDM seals optional.

• True Union Thermoplastic Ball Valve with PTFE Seats
• Thermoplastic Injection Quill with Beveled Tip
• 316SS Chain and Hardware
• Variable and Customer Injector Lengths
• Ball Check Valve with FPM O-Rings
• Standard MNPT and Threaded True Union End Connections
• Pressure rated to 150 psi @ 70°F/10 Bar at 21°C

Specifications

Item Number	CS11100T06BV1
Brand	Hayward
Body Material	PVC
Category	N/A
Class	CS Series Corporation Stops
End Connection Type	MNPT
Pipe Size	1 in
Pressure Rating	150 PSI
Sealing Material	FPM
Series	CS Series Corporation Stops
Sub Category	N/A
Subtype	Pressure & Chemfeed
Type	Pressure & Flow Control Valves
