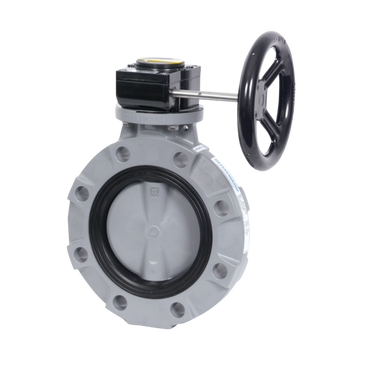

BYV22030A0EG000 | 3" Butterfly Valve w/CPVC Body; CPVC Disc; EPDM liner & seals; gear operator | Hayward

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BYV22030A0EG000

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward BYV22030A0EG000 Documents

Datasheet More Info

Overview

Details for BYV22030A0EG000

3" Butterfly Valve w/CPVC Body; CPVC Disc; EPDM liner & seals; gear operator

The BYV Series butterfly valves are available in PVC, CPVC and GFPP bodies and discs. Liners and seals available in FKM, EPDM or Nitrile materials. 316SS Stems are standard. The BYV Series features a revolutionary hand lever with 19 lockable stop positions and 360 degree interlocking splines. “Patented” & Other Patents Pending” Pat. No.: 9,695,947; 9,989,154; 10,683,937; 10,683,938; 10,690,252; 11,092,242.

• One Piece Injection Molded PVC, CPVC or GFPP Body
• PVC, CPVC or GFPP Disc Materials
• Hand Lever with 19 Lockable Stop Positions & 360° Interlocking Splines
• External Disc Position and Flow Indication
• Hydro-dynamic Centric Disc for Increased Flow Performance
• Over-Sized Liner Face Maximizes Surface Contact with Flanges
• 1-Piece 316 Stainless Steel Stem with Threaded Retaining Gland
• Stem Bearing and Seal Retainer for Absolute Stem Position and Seal
• ISO 5211 Top Flange and Stem Drive
• All Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
• Pressure Rated at 150 PSI/10 Bar in All Sizes @ 70°F Non-Shock
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number	BYV22030A0EG000
Brand	Hayward
Body Material Type	CPVC Body
Body Material	CPVC
Category	Butterfly Valves
Category	Thermoplastic Valves
Class	BYV Series Butterfly Valves
Cv Coefficient	250.0000
Disc Material	CPVC
Disc Material	CPVC Disc
Flow Coefficient (Cv)	280
Liner Material	EPDM
Medium Temperature Range	70 ºF 21 ºC
Method of Operation	Gear
Operation Type	Gear Operated
Pipe Size	3 in
Pressure Rating at 70°F	150 psi 10 bar
Pressure Rating	150 PSI
Sealing Material	EPDM
Series	BYV Series Butterfly Valves
Size	3" 80 mm
Stem Material	316SS
Sub Category	Butterfly Valves
SubCategory	BYV Series Butterfly Valves - Gear Operated
Subtype	Butterfly Valves
Type	Thermoplastic Valves
Valve Size	3 in
