BYV11040A0VG000 | 4" Butterfly Valve w/PVC Body; PVC Disc; FKM liner / FPM seals; gear operator | Hayward

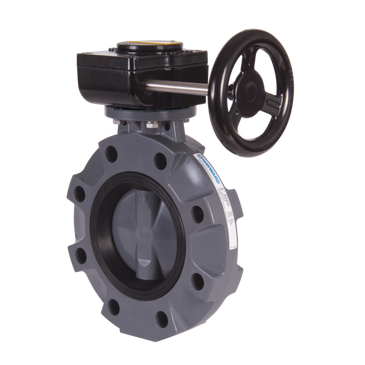

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BYV11040A0VG000
Overview
Details for BYV11040A0VG000
4" Butterfly Valve w/PVC Body; PVC Disc; FKM liner / FPM seals; gear operator
The BYV Series butterfly valves are available in PVC, CPVC and GFPP bodies and discs. Liners and seals available in FKM, EPDM or Nitrile materials. 316SS Stems are standard. The BYV Series features a revolutionary hand lever with 19 lockable stop positions and 360 degree interlocking splines. “Patented” & Other Patents Pending” Pat. No.: 9,695,947; 9,989,154; 10,683,937; 10,683,938; 10,690,252; 11,092,242.
• One Piece Injection Molded PVC, CPVC or GFPP Body• PVC, CPVC or GFPP Disc Materials
• Hand Lever with 19 Lockable Stop Positions & 360° Interlocking Splines
• External Disc Position and Flow Indication
• Hydro-dynamic Centric Disc for Increased Flow Performance
• Over-Sized Liner Face Maximizes Surface Contact with Flanges
• 1-Piece 316 Stainless Steel Stem with Threaded Retaining Gland
• Stem Bearing and Seal Retainer for Absolute Stem Position and Seal
• ISO 5211 Top Flange and Stem Drive
• All Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
• Pressure Rated at 150 PSI/10 Bar in All Sizes @ 70°F Non-Shock
• NSF / ANSI 61 and NSF / ANSI 372 Listed
Specifications
Item Number | BYV11040A0VG000 |
Brand | Hayward |
Body Material Type | PVC Body |
Body Material | PVC |
Category | Butterfly Valves |
Category | Thermoplastic Valves |
Class | BYV Series Butterfly Valves |
Cv Coefficient | 470.0000 |
Disc Material | PVC |
Disc Material | PVC Disc |
Flow Coefficient (Cv) | 600 |
Liner Material | FKM® |
Medium Temperature Range | 70 ºF 21 ºC |
Method of Operation | Gear |
Operation Type | Gear Operated |
Pipe Size | 4 in |
Pressure Rating at 70°F | 150 psi 10 bar |
Pressure Rating | 150 PSI |
Sealing Material | FPM |
Series | BYV Series Butterfly Valves |
Size | 4" 100 mm |
Stem Material | 316SS |
Sub Category | Butterfly Valves |
SubCategory | BYV Series Butterfly Valves - Gear Operated |
Subtype | Butterfly Valves |
Type | Thermoplastic Valves |
Valve Size | 4 in |
