BYV11030A0NG000 | 3" Butterfly Valve w/PVC Body; PVC Disc; NITRILE liner & seals; gear operator | Hayward

Brand: HaywardSKU: BYV11030A0NG000

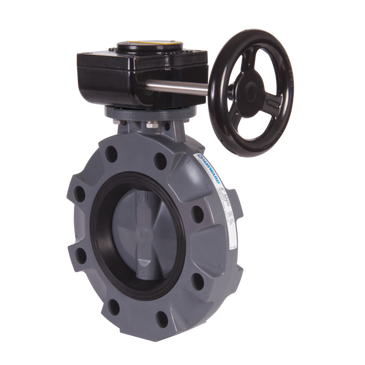

Hayward | BYV11030A0NG000
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BYV11030A0NG000

Overview Details for BYV11030A0NG000

3" Butterfly Valve w/PVC Body; PVC Disc; NITRILE liner & seals; gear operator

The BYV Series butterfly valves are available in PVC, CPVC and GFPP bodies and discs. Liners and seals available in FKM, EPDM or Nitrile materials. 316SS Stems are standard. The BYV Series features a revolutionary hand lever with 19 lockable stop positions and 360 degree interlocking splines. “Patented” & Other Patents Pending” Pat. No.: 9,695,947; 9,989,154; 10,683,937; 10,683,938; 10,690,252; 11,092,242.

• One Piece Injection Molded PVC, CPVC or GFPP Body
• PVC, CPVC or GFPP Disc Materials
• Hand Lever with 19 Lockable Stop Positions & 360° Interlocking Splines
• External Disc Position and Flow Indication
• Hydro-dynamic Centric Disc for Increased Flow Performance
• Over-Sized Liner Face Maximizes Surface Contact with Flanges
• 1-Piece 316 Stainless Steel Stem with Threaded Retaining Gland
• Stem Bearing and Seal Retainer for Absolute Stem Position and Seal
• ISO 5211 Top Flange and Stem Drive
• All Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
• Pressure Rated at 150 PSI/10 Bar in All Sizes @ 70°F Non-Shock
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number BYV11030A0NG000
Brand Hayward
Body Material Type PVC Body
Body Material PVC
Category Butterfly Valves
Category Thermoplastic Valves
Class BYV Series Butterfly Valves
Cv Coefficient 250.0000
Disc Material PVC
Disc Material PVC Disc
Flow Coefficient (Cv) 280
Liner Material Nitrile
Medium Temperature Range 70 ºF 21 ºC
Method of Operation Gear
Operation Type Gear Operated
Pipe Size 3 in
Pressure Rating at 70°F 150 psi 10 bar
Pressure Rating 150 PSI
Sealing Material Nitrile
Series BYV Series Butterfly Valves
Size 3" 80 mm
Stem Material 316SS
Sub Category Butterfly Valves
SubCategory BYV Series Butterfly Valves - Gear Operated
Subtype Butterfly Valves
Type Thermoplastic Valves
Valve Size 3 in
