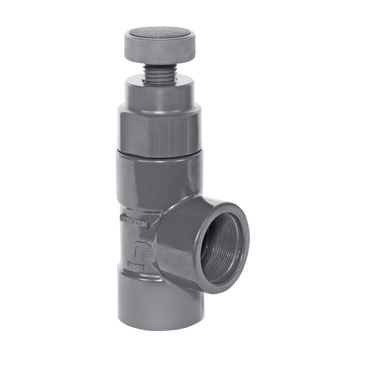

AV10100T | 1" PVC Angle Globe Valves w/FPM o-ring seal and seat; threaded end connections | Hayward

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AV10100T

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward AV10100T Documents

Datasheet More Info

Overview

Details for AV10100T

1" PVC Angle Globe Valves w/FPM o-ring seal and seat; threaded end connections

Available in sizes 1/4 in. to 2 in. with FPM Seals and NPT threaded ends. All PVC construction. Perfect for throttling and changing flow direction or venting.

• Available in PVC and CPVC
• Space Saving Angle Design
• Fine Pitch Stem Threads for Precision Adjustment
• Perfect for Throttling and Changing Flow Direction

Specifications

Item Number	AV10100T
Brand	Hayward
A	7.44 in
B	6.19 in
Body Material	PVC
C	2.06 in
Category	Control Valves
Category	Pressure & Flow Control Valves
Class	AV Series Pressure Regulator Valves
Cv Factor	16.0
D	1.94 in
E	1.94 in
End Connection Type	Threaded
End Connection	Threaded
F	2.75 in
Material	PVC
Pipe Size	1 in
Pressure Rating	150 PSI
Seal	FPM
Seals	FPM
Seats	FPM
Series	AV Series Angle Valves
Size	1"
Sub Category	Flow Control Valves
SubCategory	Angle Globe Valves - AV Series
Subtype	Flow Control Valves
Type	Pressure & Flow Control Valves
