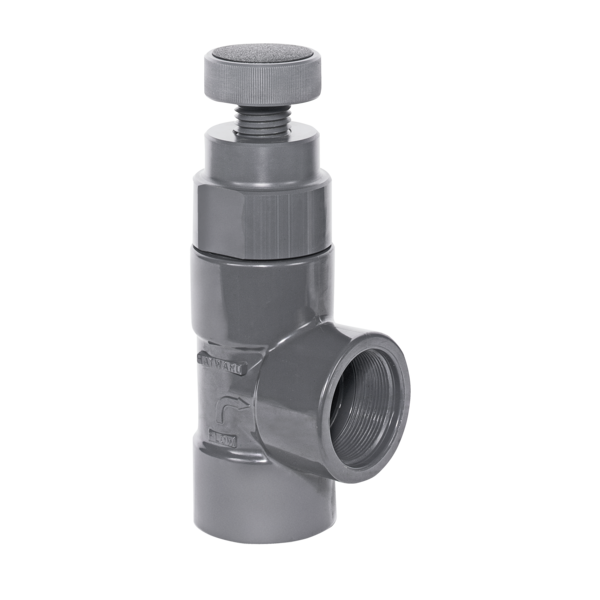

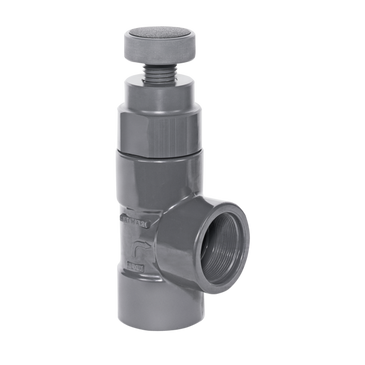

AV10075T | 3/4" PVC Angle Globe Valves w/FPM o-ring seal and seat; threaded end connections | Hayward

Brand: HaywardSKU: AV10075T

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AV10075T

Jump to: Overview & Specifications Reviews

Overview Details for AV10075T

3/4" PVC Angle Globe Valves w/FPM o-ring seal and seat; threaded end connections

Available in sizes 1/4 in. to 2 in. with FPM Seals and NPT threaded ends. All PVC construction. Perfect for throttling and changing flow direction or venting.

• Available in PVC and CPVC
• Space Saving Angle Design
• Fine Pitch Stem Threads for Precision Adjustment
• Perfect for Throttling and Changing Flow Direction

Specifications

Item Number	AV10075T
Brand	Hayward
A	6.38 in
B	5.19 in
Body Material	PVC
C	1.88 in
Category	Control Valves
Category	Pressure & Flow Control Valves
Class	AV Series Pressure Regulator Valves
Cv Factor	10.0
D	1.56 in
E	1.63 in
End Connection Type	Threaded
End Connection	Threaded
F	2.44 in
Material	PVC
Pipe Size	3/4 in
Pressure Rating	150 PSI
Seal	FPM
Seals	FPM
Seats	FPM
Series	AV Series Angle Valves
Size	3/4"
Sub Category	Flow Control Valves
SubCategory	Angle Globe Valves - AV Series
Subtype	Flow Control Valves
Type	Pressure & Flow Control Valves
