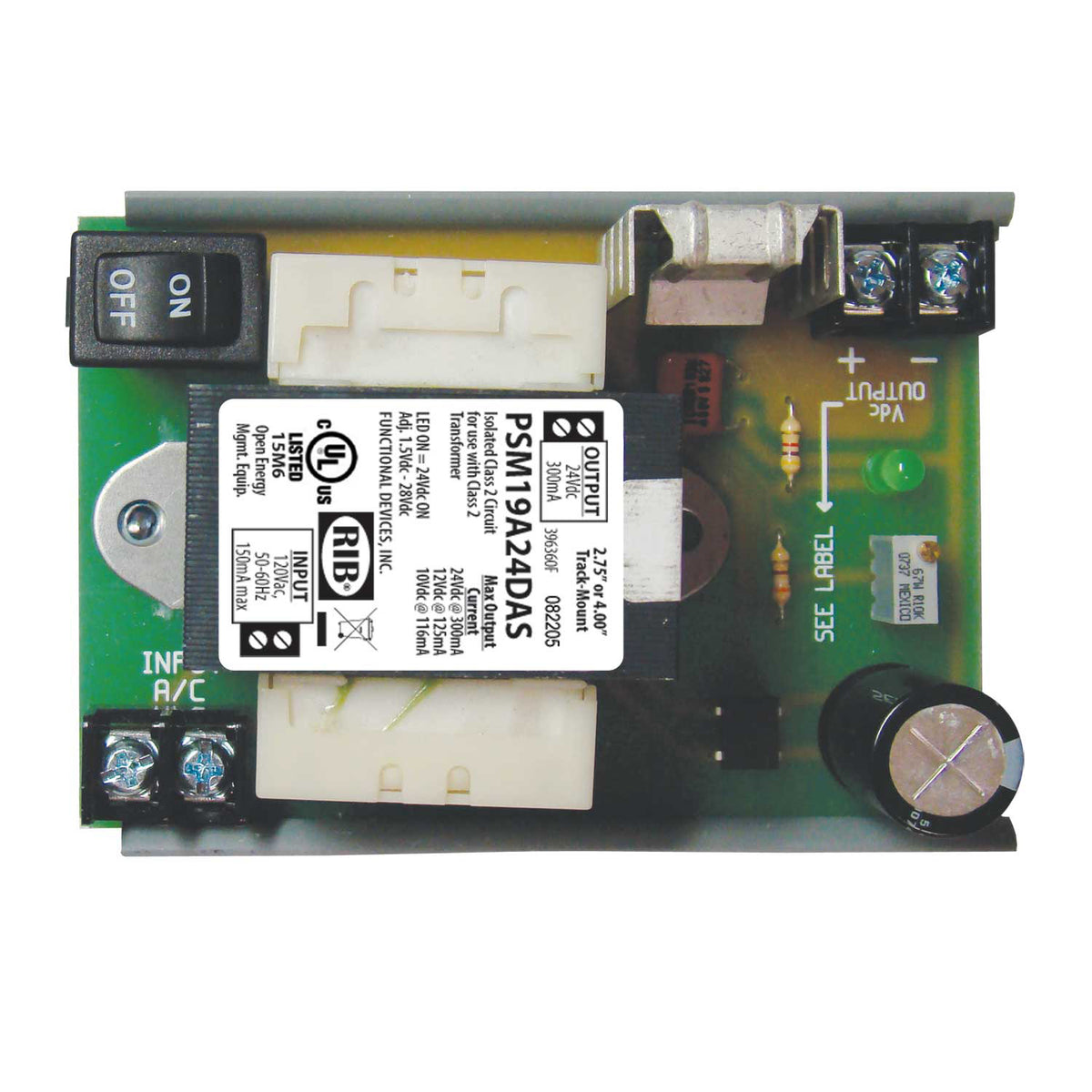

PSM19A24DAS | GEN. PUR. DC SUPPLY, Isolated 120Vac Input, w/MT212-4 track, fits 2.75 or 4in | Functional Devices
DC Power Supply, Isolated Linear, 120 Vac to 1.5-28 Vdc, 300mA Adjustable Output, Track Mount
Overview
Details for PSM19A24DAS
GEN. PUR. DC SUPPLY, Isolated 120Vac Input, w/MT212-4 track, fits 2.75 or 4in
Specifications
Voltage Input: 120 Vac
Voltage Output: 1.5 - 28 Vdc Isolated
Frequency: 50/60 Hz
Overload Protection: Electrical and Thermal, Auto-Reset
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Power Status: LED On = Activated
Dimensions: 1.625˝ x 2.750˝ x 4.000˝
Track Mount: 4.000˝ and 2.750˝
MT212-4 Mounting Track Supplied
ON/OFF Switch: 2 Position
Approvals: UL916, C-UL, CE, RoHS
Output Current Ratings:
116 mA @ 10 Vdc
125 mA @ 12 Vdc
300 mA @ 24 Vdc
Input Current Rating:
150 mA Maximum
Percent Ripple:
0.0016%, 24 Vdc @ 300 mA
Input Current Rating:
150 mA Maximum
Regulation:
Load: 0.04% No Load to Full Load
Line: 0.6250 mV/V
Specifications
| Item Number | PSM19A24DAS |
| Brand | Functional Devices |
| Input | 120VAC |
| Output | Adjustible DC |
| Type | DC |
