Overview
Details for PSH500A-IC

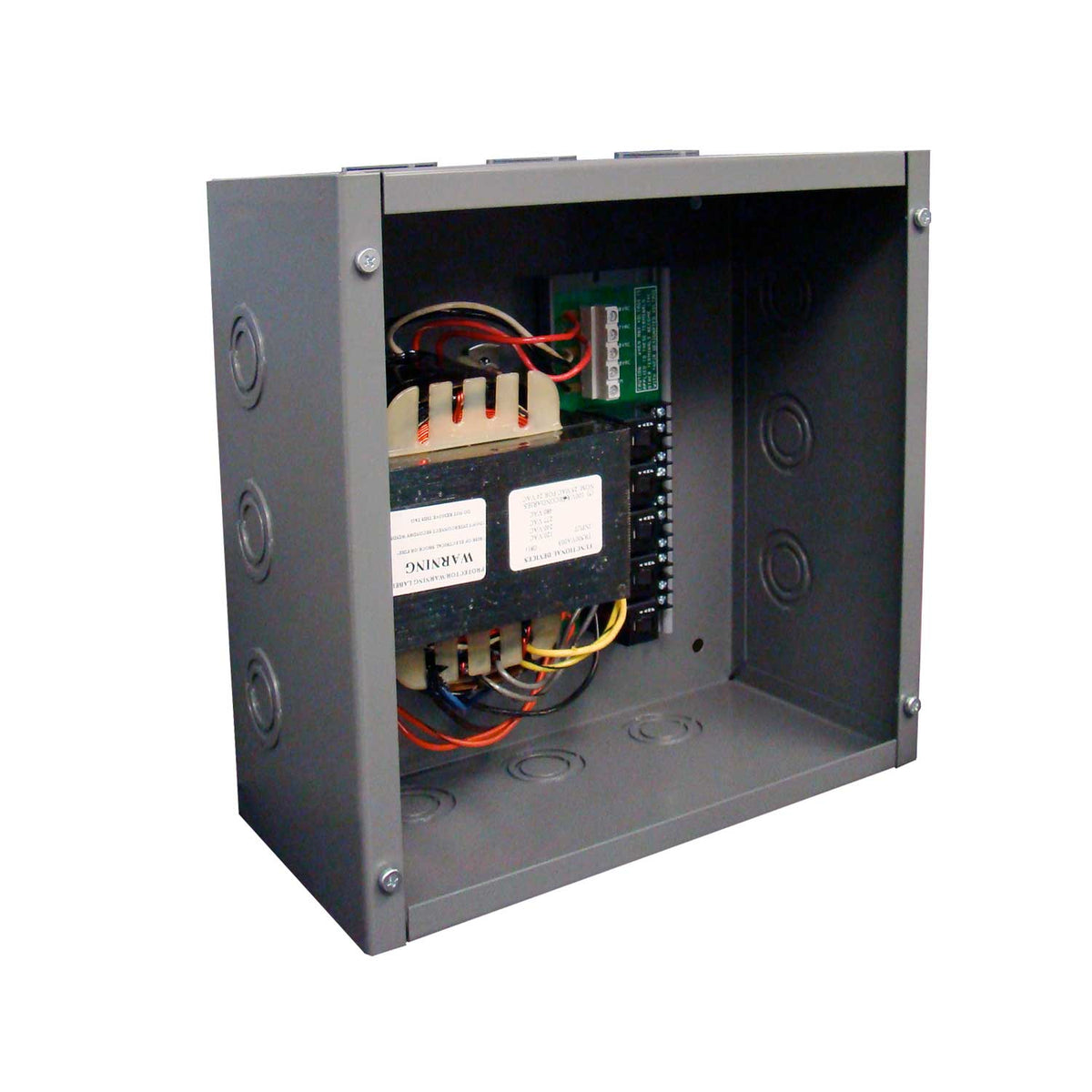

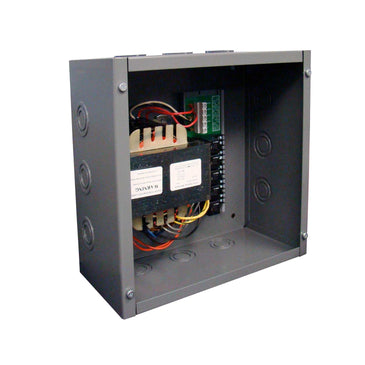

UL508 Enclosed 5-100VA 120/240 to 24Vac UL Class 2 power supply
Specifications
Transformer: One (1) 500 VA
Over Current Protection: Circuit Breaker
Primary: 480/277/240/120 Vac
Frequency: 50/60 Hz
Dimensions: 12.125˝ x 12.125˝ x 6.000˝
Approvals: Class 2 (UL Approved UL5085-3),
UL916, C-UL, CE, RoHS
^ Seismic Certification of Equipment and
Components: OSP-0201-10
Housing: NEMA1 Metal Enclosure with
high/low separation
5 Secondaries:
24 Vac, with LED Indicators
4 Amp breaker for each output
24 Vac ON/OFF:
On / Off Switch & Breaker
Input:
480/277/240/120 Vac Finger-Safe Terminals, 8-18 AWG
Output:
5 Ungrounded, Isolated, 100 VA Class 2, 24 Vac Outputs.
Removable Terminals accept16-22 AWG wire.
Ambient Temperature Derating:
4A up to 40˚ C ; 3A up to 50˚ C ; 2A up to 55˚ C
(When All 5 Outputs Operated Simultaneously)
Standby Wattage:
48.515 W @ 120 Vac
48.699 W @ 240 Vac
49.564 W @ 277 Vac
48.255 W @ 480 Vac
Full Load Primary Current:
4.66 A @ 120 Vac
2.41 A @ 240 Vac
2.06 A @ 277 Vac
1.17 A @ 480 Vac
Secondary Output Voltage vs. Load:
24.0 V @ 1 Amp
23.0 V @ 2 Amp
21.8 V @ 3 Amp
21.1 V @ 4 Amp
- With 240 Vac primary input voltage
- When all 5 outputs operated simultaneously, at room temperature
Specifications
Item Number | PSH500A-IC |
Brand | Functional Devices |
Input | 120VAC |
Output | 24VAC |
Type | AC |
VA | 100VA |
