PSH2C2RB10-L | Enclosed UPS Interface board (Large housing 14 x 16 x 6) | Functional Devices

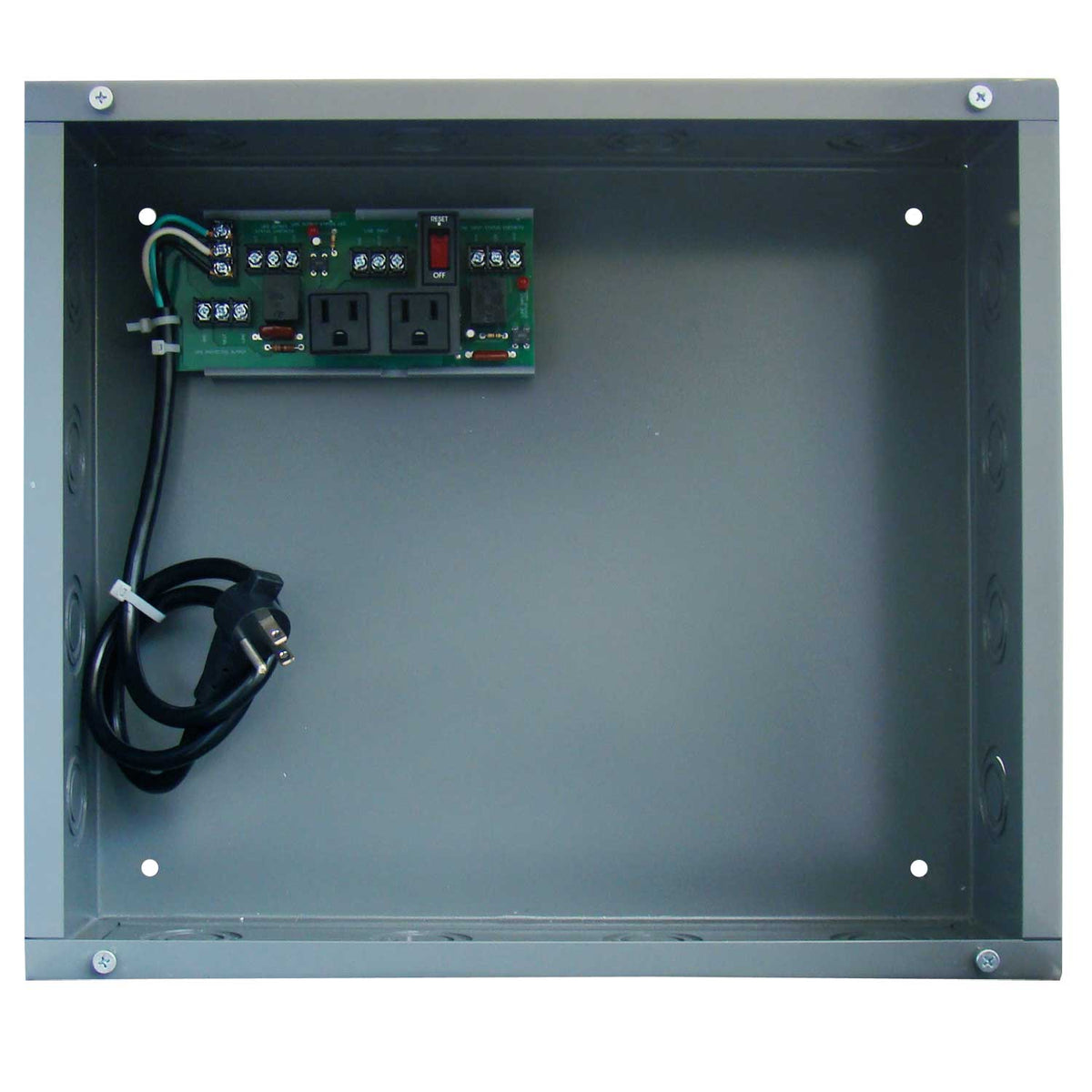

Enclosed UPS Interface board (Large housing 14 x 16 x 6)

Specifications

Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Main Breaker ON/OFF: Switch / Breaker (10 Amp)
Approvals: UL Listed, UL916, C-UL, CE, RoHS
Dimensions: 14.000˝ x 16.000˝ x 6.000˝ Metal Housing with Screw Cover

Line Input Status Contacts and UPS Output Status Contacts Rated:
10 Amp @ 277 Vac General Use
10 Amp @ 30 Vdc N/O
7 Amp @ 30 Vdc N/C
1/2 HP @ 125 Vac
1/4 HP @ 277 Vac
1000 VA @ 120 Vac Magnetic Ballast N/C
C300 Pilot Duty
16.8 VA @ 24 Vac Pilot Duty

Notes:

• Track mounted interface board may be ordered separately as model PSMN2C2RB10, to be used with any commercial UPS with appropriate ratings for the circuit breaker.
• Circuit breaker for short-circuit protection.
• 14/3 Line Cord included (3´).
• Use with UPS devices rated 1000 VA or less.
  • Max. size: 14.000˝ x 10.000˝ x 5.500˝
  • 120 Vac, 600 W max., 8.3 Amp max.
• UPS is not included.
• To order a kit with a UPS, see PSH850-UPS-STAT.
