Documents: 6500 MXPLVF0212

More Info

6500 MXPLVF0212 | Vented Plinth | EXM

The 6500 MXKDD series is used to protect the equipment against oil, dust, dirt, and light water splashing.

Brand: EXMSKU: 6500 MXPLVF0212

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 6500 MXPLVF0212

Jump to: Overview & Specifications Reviews

Overview Details for 6500 MXPLVF0212

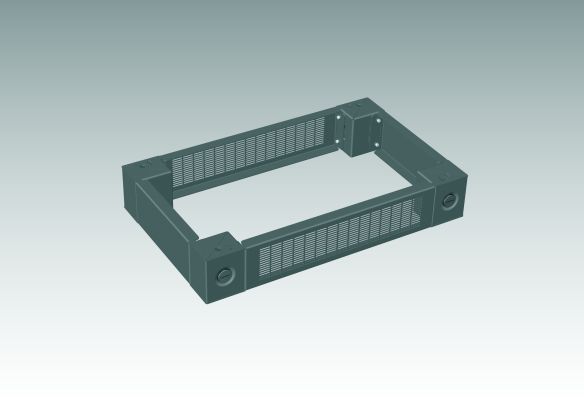

The 6500 MXPLVF vented plinths are made to be installed under Mtrx cabinets. They are made of steel. Vented plinths are ordered using two catalog numbers. (i) The 6500 MXPLVF specifies the plinth's front and rear covers and is relative to the cabinet's width; (ii) The 6500 MXPLVS specifies the plinth's side covers and is relative to the cabinet's depth. Mtrx plinths feature an exclusive 1/4 turn plinth system which was designed to facilitate the installation and removal of plinth covers. The plinth's front and rear covers are vented. The plinths are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Finish is RAL7011 sandtex dark gray.Plinths are not included with the 6500 MXK and 6500 MXU cabinet kits and must always be ordered separately.

The 6500 MXPLVF kits include front and rear plinth covers, four corner blocks and installation hardware. The side plinth covers must be purchased separately. The 6500 MXPLVS kits include side plinth covers and installation hardware. The 6500 MXPLVF front and rear plinth covers must be purchased separately.
