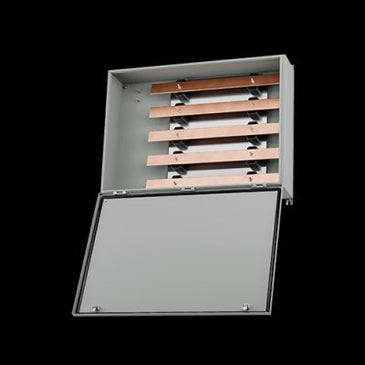

1412 BTCU08804 | Type 4, 12 | Bus bar splitter trough with copper bus bars and cover secured by 1/4 turns | 96L x 30W x 10H (in) | EXM

The 1412 BTCU bus bar splitter troughs are used indoors or outdoors to house bus bars for power distribution. Troughs and covers are made of high quality 14 GA steel, with continuously weldedcorner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-in-place gasket ensures a complete and durable water tight seal. The captive pins of the concealed hinges can be pulled to remove the door. Quarter turn mechanisms ensure positive closing. Troughs are available in configurations of 3, 4 or 5 copper bus bars, which mount on slanted insulators that are installed on an inner panel. Lugs must be ordered separately. Bus bars are also available drilled and tapped 1/4 - 20 at 6” intervals, just add suffix ‘DT’ to the catalog number (ie. 1412 BTCU...DT). There are no knockouts. Troughs are finished with heat fused powder paint, electro-statically applied on a pretreated base. The box is gray. Inner panel is galvanized (other colors available). CSA Certified NEMA/EEMAC 3-4-12 / IP66

Made of high quality steel, with continuously welded corner seams. The cover is secured by ¼ turn locks. A robotically poured-in-place seamless gasket ensures a durable seal. The enclosure has die cast hinges, with stainless steel captive pins. Wall mounting feet kit are provided. The body's construction is designed to prevent dripping water from entering the enclosure. Copper bus bars, are mounted on slanted insulators. Paint color: ANSI 61 smooth gray. CSA certified. NEMA 4, 12. IEC 60529 IP66.
