24X16 ND-RSD NC | Rectangular Damper | 24X16 ND MOTORIZED DAMPER SPRING RETURN - NORMALLY CLOSED | EWC Controls (OBSOLETE)
This damper is 24" by 16". The motor/lever is installed on the 16" side. Full dimensional specifications are in the datasheet below.
Documents and manuals
EWC Controls 24X16 ND-RSD NC Documents
Overview
Details for 24X16 ND-RSD NC
Rectangular Damper | 24X16 ND MOTORIZED DAMPER SPRING RETURN - NORMALLY CLOSED
Description

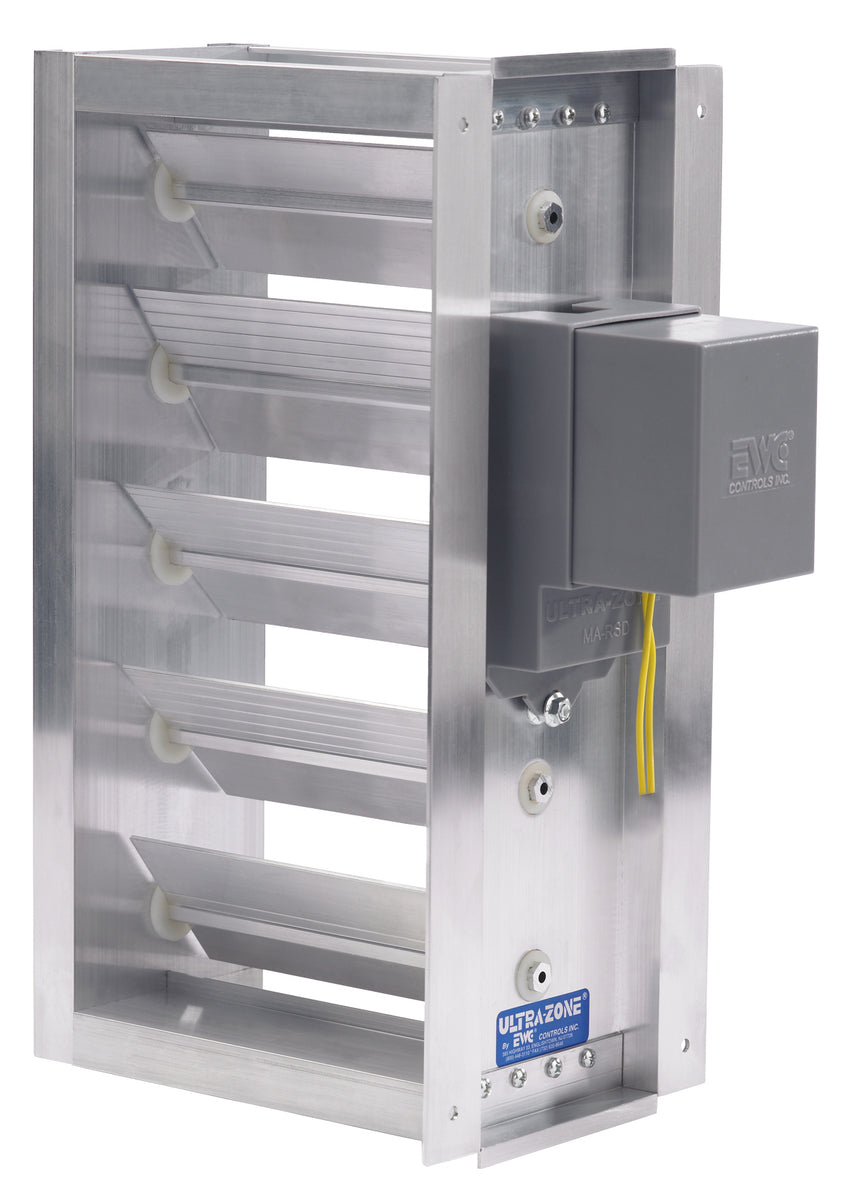

Model ND-RSD is a rectangular parallel blade damper constructed from heavy duty extruded aluminum with nylon bearings for quiet operation. The Motor Actuator is a 24vac (6watt / 8va) Synchronous motor. It is typically a Power Close / Spring Open construction. The damper can be ordered as Power Open / Spring Close. The Model ND-RSD cannot be field-reversed.
The Synchronous motor can get very warm when energized/stalled for extended time periods. To avoid overheating, do not insulate or encapsulate the motor housing. Doing so will damage the actuator assembly and void the warranty.
Specifications
Item Number | 24X16 ND-RSD NC |
Brand | EWC Controls |
Motorized | Yes |
Shape | Rectangular |
Size (in) | 24 x 16 |
Spring Return | Spring Return (NC) |
Type | Rectangular Dampers |
