24X12 ND | Rectangular Damper | 24X12 ND MOTORIZED DAMPER | EWC Controls

EWC Controls | 24X12 ND

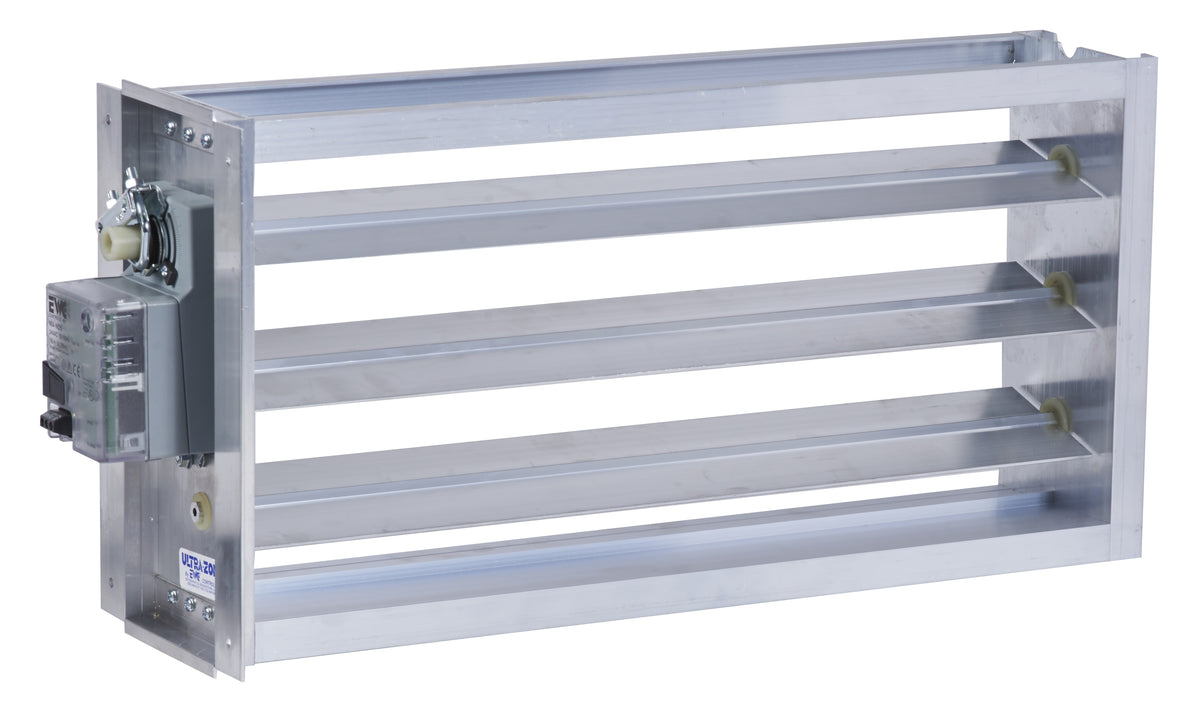

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for 24X12 ND

ACTUATORS ARE INSTALLED ON THE 2ND DIMENSION, PHOTO IS GENERIC AND MAY NOT REPRESENT THE PART BEING ORDERED

EWC DAMPERS ARE BUILT TO ORDER AND CANNOT BE CANCELED OR RETURNED UNLESS RENDERED DEFECTIVE BY MANUFACTURER UPON INSPECTION

Rectangular Damper | 24X12 ND MOTORIZED DAMPER

The ND series of Ultra-Zone dampers was designed with the installer and homeowners in mind. This damper is easy to install and easy to checkout. The LED display allows the installer to visually check the damper operation. With a sturdier frame, the damper installs in the duct much faster and easier and the nylon bushings ensure quieter operation. This is a feature that homeowners will never hear about! Quieter operation and a longer life motor equals NO call backs. The motor for the ND damper is driven by 18" lbs. of torque, possesses a manual gear release, 3 wire power open/power closed operation and fail-safe LED’s for quick diagnostic checks. The motor is UL listed and NEMA Class 2 certified. The easy access, quick connecting terminal block eliminates the need for wire nuts and allows for trouble free use. The ND damper has a 97% leak proof rating. Overlapping blades and a strong positive shut-off motor ensures accurate control of all zones. The ND dampers combined with an Ultra-Zone zoning system provides the most comfortable and reliable system in the industry. The ND is available in 8" x 6" thru 30" x 30" in even inch increments. The motor will be mounted on the second dimension when ordered. For example, a 16" x 8" damper will have the motor mounted on the 8" dimension, while an 8" x 16" will have the motor mounted on the 16" dimension. This will alleviate the confusion between side mount and bottom mount dampers. For added flexibility, ND dampers can also be provided with a spring return style motor. (Model ND-RSD). The ND-RSD is driven by 3" lbs. of torque without LEDs.

Specifications

Item Number
24X12 ND
Brand
EWC Controls
Manufacturer
EWC Controls
Motorized
Yes
Shape
Rectangular
Size (in)
24 x 12
Spring Return
Non-Spring Return
Type
Rectangular Dampers

Documents

EWC Controls 24X12 ND Documents

Reviews

Brand: EWC ControlsSKU: 24X12 ND

Web Price:

$226.95
Availability: This product is currently available to purchase
This item ships FREE
The product is not cancelable or returnable unless found defective
