MP-475 | Act: Elec, Prop, 2-12 VDC, SR, 120 VAC, TB, 50 in-lb, Rotary, SPDT, Act drive, FB, Trans, N1, Erie | Erie by Schneider Electric

Act: Elec, Prop, 2-12 VDC, SR, 120 VAC, TB, 50 in-lb, Rotary, SPDT, Act drive, FB, Trans, N1, Erie

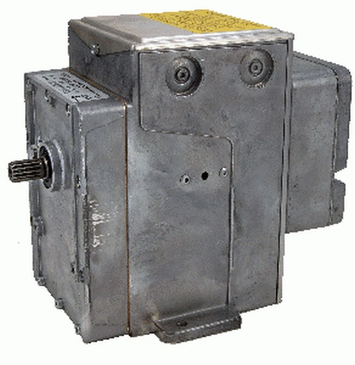

Actuator: (MP-475):

• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 2 to 12 VDC
• Loss of Power Type: Spring Return
• Power Input Voltage: 120 VAC
• Leads and Connections: Terminal Block
• Torque: 50 in-lb
• Mechanical Movement: Rotary
• Auxiliary Switch: 1 SPDT
• Additional Features: Actuator drive, Feedback potentiometer, Transformer
• Protection Rating: NEMA 1
• Product Line: Schneider Electric
• Product Range: Gear Train
• Product Series: MPx-4xx
• Actuator Use: Dampers, Globe Valves

The MP series actuators are used for two-position, floating, and proportional control of dampers, valves, and program switches in heating, ventilating, air conditioning, and similar applications. Hazardous location models offer a sturdy cast aluminum case with bolted cover. They have two 3/4" pipe tapped openings for joints with rigid metal conduit. All wiring is brought out to separate terminals for ease of installation. These factory enclosure and actuator assemblies are Underwriters Laboratories Listed.
