ZV20412 | 2-way zone valve | 1" NPT | 120 VAC. | Dwyer

2-way zone valve, 1" NPT, 120 VAC.

Brand: DwyerSKU: ZV20412
Dwyer | ZV20412

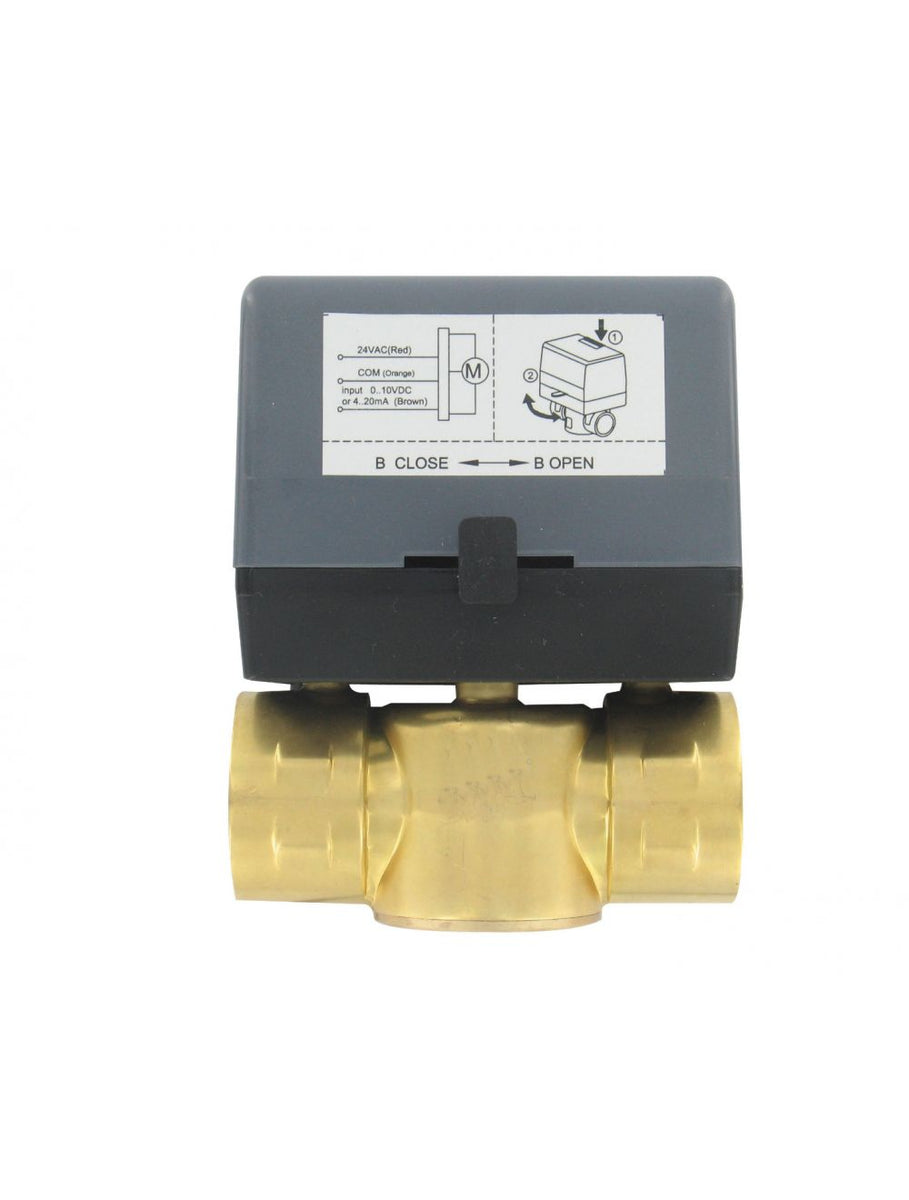

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ZV20412

Overview Details for ZV20412

See catalog product page for full listing

2-way zone valve | 1" NPT | 120 VAC.

Series ZV2 Two-Way Detachable Zone Valve

Floating or Modulating

ZV2 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems. Zone valves are typically used in conjunction with a thermostat to control room temperature. The ZV2 is electrically driven to open and or close via a bidirectional motor. Units are available in 1/2", 3/4", 1", and 1-1/4" sizes with 24 or 120 VAC power supply. Easy to install, these units are direct replacements for competitor units. Manual override lever is easily accessible externally. Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.

ZV2 models come in floating or modulating input types. Floating units are controlled directly from the thermostat and modulation units accept either a 4 to 20 mA or 0 to 10 VDC input. Modulating models include a motor time out feature that automatically turns off the motor after the full stroke of the valve to increase motor life. Featured in the ZV2 is a detachable actuator that is easily removable by a turn key allowing the valve body to be installed without the actuator. Actuator housing is constructed of fire resistant plastic.

California Residents:  Click Here for Proposition 65 WARNING.

  • Manual override lever
  • Removable actuator
  • Motor time out for controllers that do not automatically turn off their signal after the full stroke of the valve

Specifications

Series
ZV2 Two-Way Detachable Zone Valve
Category/Type
Valves
Type
Valves
Valve Type
Zone
Series
ZV2 Two-Way Detachable Zone Valve
Service
Compatible fluids.
Body
2-way; normally closed.
Line Size
1/2" to 1-1/4".
End Connections
Female NPT (optional BSP; sweat connections).
Pressure Limits
Maximum: 300 psi (20.7 bar); Close-off: 43 psi (2.96 bar).
Temperature Limits
Ambient: 32 to 104°F (0 to 40°C); Process: 37 to 201°F (3 to 94°C).
Wetted Materials
Brass; stainless steel; NBR.
Flow Characteristic
Quick opening.
Input
Floating: 3-wire; Modulating: 0 to 10 VDC or 4 to 20 mA (24 VAC power only).
Power Requirements
120 VAC or 24 VAC; ±10%; 50/60 Hz. (Optional 220 VAC.)
Power Consumption
Floating: 2.5 VA; Modulating: 3.5 VA.
Electrical Connection
18 AWG jacketed; 9" (228 mm) long.
Cycle Time
Opening time: 50 to 65 seconds.
Enclosure Rating
General purpose.
Housing Material
PVC and polycarbonate.
