ZV1043-NO | Two-way zone valve | 1" NPT | 230 VAC. | Dwyer

Two-way zone valve, 1" NPT, 230 VAC.

Brand: DwyerSKU: ZV1043-NO

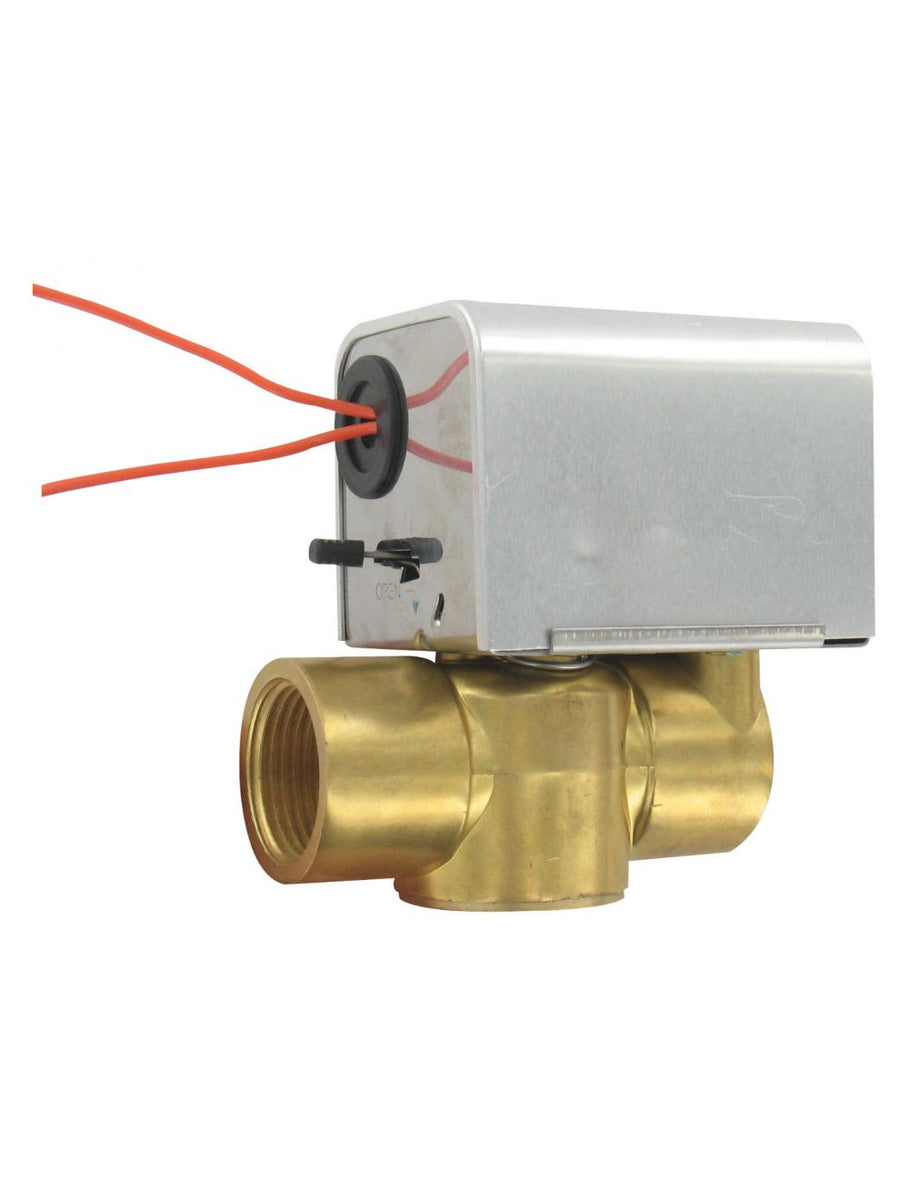

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZV1043-NO

Jump to: Overview & Specifications Reviews

Overview Details for ZV1043-NO

See catalog product page for full listing

Two-way zone valve | 1" NPT | 230 VAC.

Series ZV1 Two-Way Zone Valve

Economical, Manual Override

ZV1 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems. Zone valves are typically used in conjunction with a thermostat to control room temperature. The ZV1 is electrically driven to open and spring to close. Units are available in 1/2", 3/4", and 1" sizes with 24 or 120 VAC power supply. Easy to install these units are direct replacements for competitor units. Manual override lever is easily accessible externally. Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: ZV1 Two-Way Zone Valve
Category/Type: Valves
Type: Valves
Valve Type: Zone
Series: ZV1 Two-Way Zone Valve
Service: Compatible fluids.
Body: 2-way; normally closed.
Line Size: 1/2" to 1".
End Connections: Female NPT (optional BSP; sweat connections).
Pressure Limits: Maximum: 300 psi (20.7 bar); Close-off: 1/2" to 3/4": 22 psi (1.5 bar); 1": 14.5 psi (1 bar).
Temperature Limits: Ambient: 32 to 104°F (0 to 40°C); Process: 0 to 201°F (0 to 94°C).
Wetted Materials: Brass; stainless steel; NBR.
Flow Characteristic: Quick opening.
Power Requirements: 120 VAC or 24 VAC; ±10%; 50/60 Hz; (optional 220 VAC).
Power Consumption: 6.5 W.
Input: On/off.
Electrical Connection: 22 AWG; 5" (127 mm) long.
Cycle Time: Opening time: 11 seconds; Closing time: 5 seconds.
Enclosure Rating: General purpose.
Housing Material: Aluminum.
