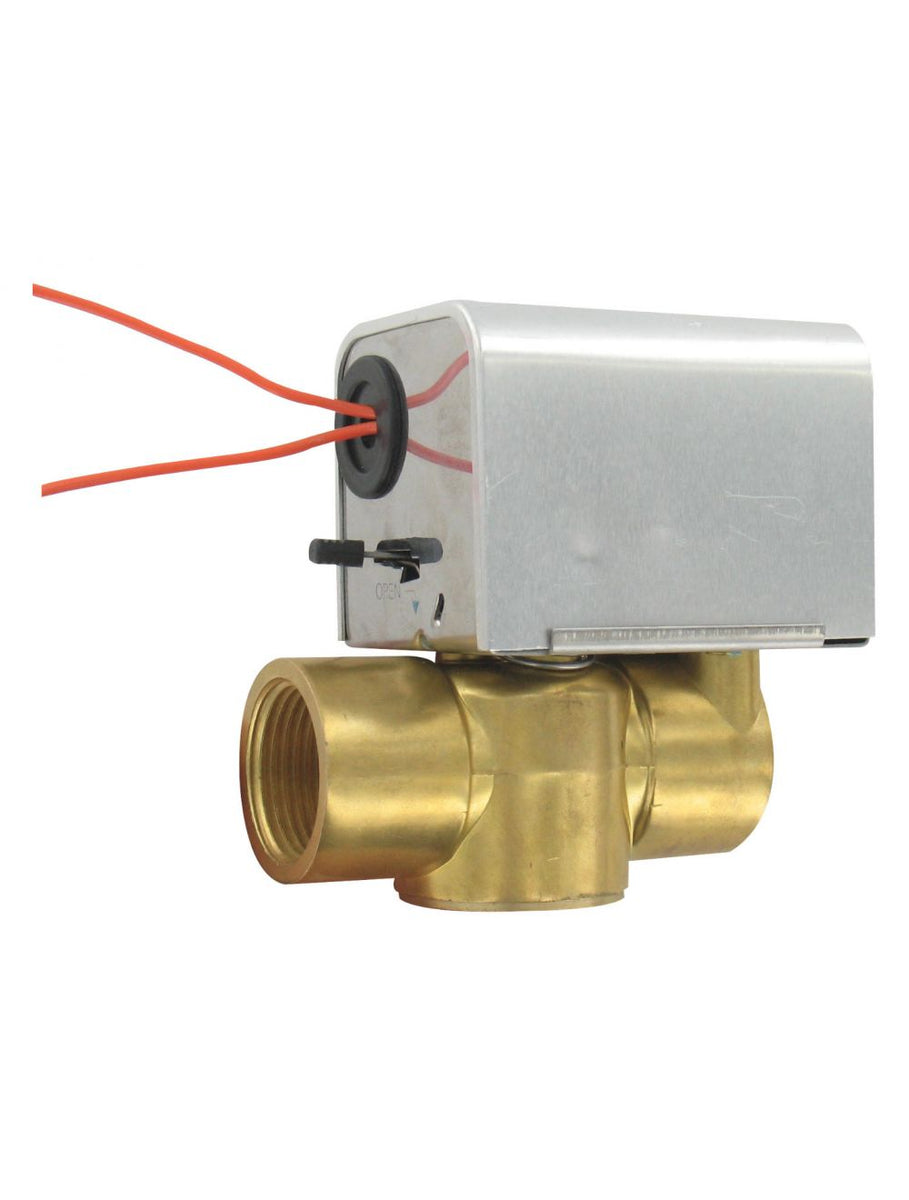

ZV1032-NO | Two-way zone valve | 3/4" NPT | 120 VAC. | Dwyer

Two-way zone valve, 3/4" NPT, 120 VAC.

Brand: DwyerSKU: ZV1032-NO
Dwyer | ZV1032-NO
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ZV1032-NO
Jump to: Overview & Specifications Reviews

Overview Details for ZV1032-NO

See catalog product page for full listing

Two-way zone valve | 3/4" NPT | 120 VAC.

Series ZV1 Two-Way Zone Valve

Economical, Manual Override

ZV1 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems. Zone valves are typically used in conjunction with a thermostat to control room temperature. The ZV1 is electrically driven to open and spring to close. Units are available in 1/2", 3/4", and 1" sizes with 24 or 120 VAC power supply. Easy to install these units are direct replacements for competitor units. Manual override lever is easily accessible externally. Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.

California Residents:  Click Here for Proposition 65 WARNING.

Specifications

Series
ZV1 Two-Way Zone Valve
Category/Type
Valves
Type
Valves
Valve Type
Zone
Series
ZV1 Two-Way Zone Valve
Service
Compatible fluids.
Body
2-way; normally closed.
Line Size
1/2" to 1".
End Connections
Female NPT (optional BSP; sweat connections).
Pressure Limits
Maximum: 300 psi (20.7 bar); Close-off: 1/2" to 3/4": 22 psi (1.5 bar); 1": 14.5 psi (1 bar).
Temperature Limits
Ambient: 32 to 104°F (0 to 40°C); Process: 0 to 201°F (0 to 94°C).
Wetted Materials
Brass; stainless steel; NBR.
Flow Characteristic
Quick opening.
Power Requirements
120 VAC or 24 VAC; ±10%; 50/60 Hz; (optional 220 VAC).
Power Consumption
6.5 W.
Input
On/off.
Electrical Connection
22 AWG; 5" (127 mm) long.
Cycle Time
Opening time: 11 seconds; Closing time: 5 seconds.
Enclosure Rating
General purpose.
Housing Material
Aluminum.
