WMT2-A-C-02-1 | 5/8" x 3/4" brass multi-jet water meter (GPM) | with pulse output | 1 Gal/pulse. | Dwyer

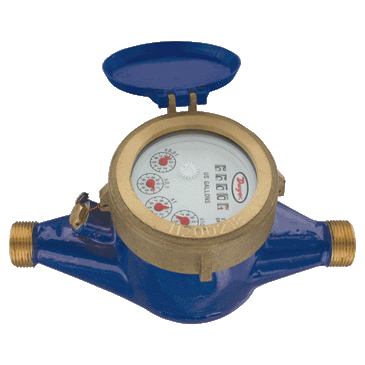

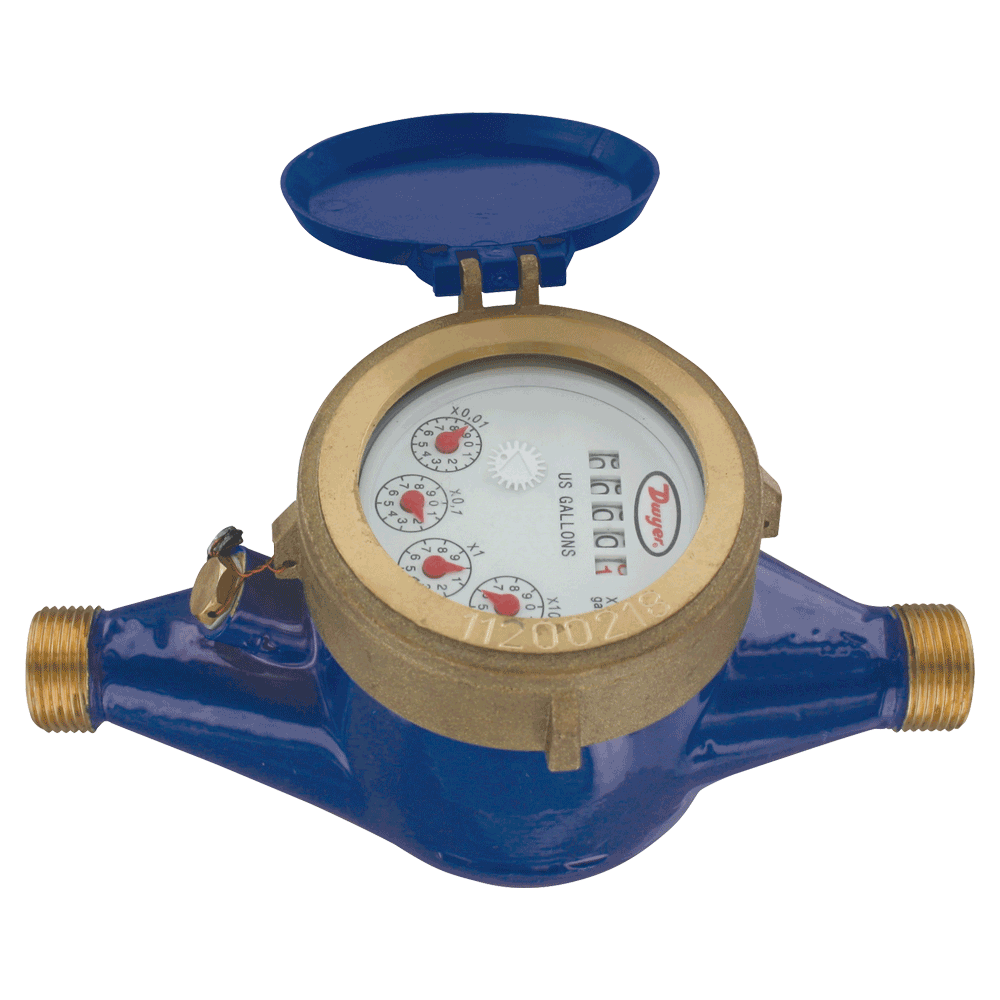

5/8" x 3/4" brass multi-jet water meter (GPM), with pulse output, 1 Gal/pulse.

Dwyer | WMT2-A-C-02-1
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to WMT2-A-C-02-1

Overview

Details for WMT2-A-C-02-1

See catalog product page for full listing

5/8" x 3/4" brass multi-jet water meter (GPM) | with pulse output | 1 Gal/pulse.

SERIES WM2 & WMT2 MULTI-JET WATER METER

Economical, Brass Body, Dry Dial

The Series WM2 Multi-Jet Water Meter is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³. They are available in a range of body sizes and include NPT or BSPT couplings.

The Series WMT2 Multi-Jet Water Meter with Pulsed Output is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³ and provide a reed switch output proportional to flow rate. They are available in a range of body sizes and include NPT or BSPT couplings.

Not for potable water use, brass contains lead in excess of low lead limits.

California Residents:  Click Here for Proposition 65 WARNING.

Product Applications

  • Irrigation
  • Cooling systems
  • Filtration systems
  • Water monitoring
  • Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
  • Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
  • Designed for long service live and maintenance-free operation, even under harsh conditions
  • Integral strainer that protects meter from particulate damage
  • Easy installation with included coupling adapters

Specifications

Series
WM2 & WMT2 MULTI-JET WATER METER
Service
Water.
Wetted Materials
Body: Brass; polyethylene; Couplings: Brass; Measuring Chamber: Polyethylene; ABS plastic; ferrite; acetal.
Flow Range
See model chart on catalog page.
Accuracy
Transitional flow: ±5%; Nominal flow: ±2%.
Temperature Limit
104°F (40°C).
Pressure Limit
232 psi (16 bar).
Totalizing Display Maximum
See model chart on catalog page.
Output Signal
Pulse output with frequency proportional to flow rate (WMT2 only).
Pulse Options
0.1 gal; 1 gal; 10 gal; 100 gal per pulse (1 L; 10 L; 100 L per pulse) (WMT2 only).
Electrical Rating
0.01 A @ 24 VAC/DC (WMT2 only).
Electrical Connections
Color-coded lead wires; 4.5´ (1.5 m) long (WMT2 only).
Mounting Orientation
Horizontal with the register face pointing up.
Weight
See dimension chart on catalog page.
