VPS2411 | Valve position sensor. | Dwyer

Valve position sensor.

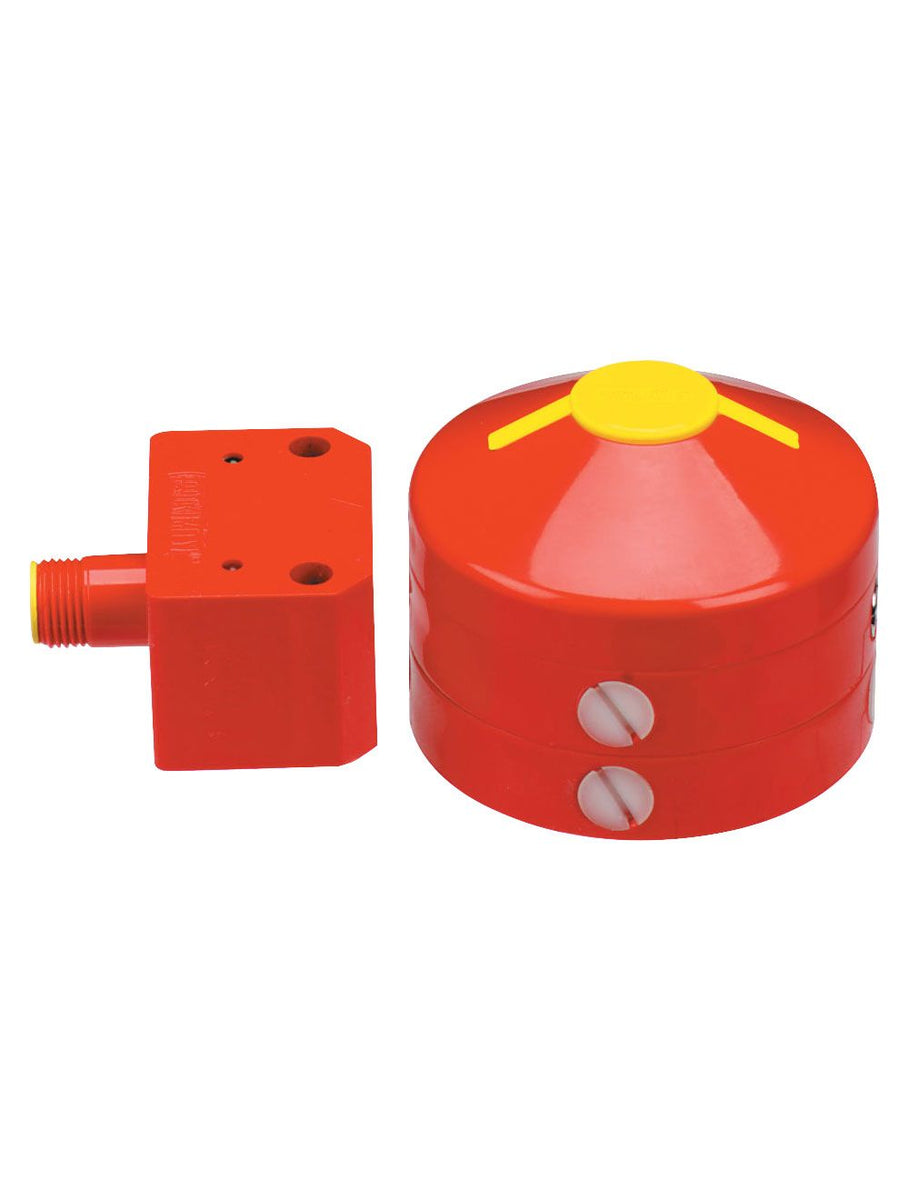

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VPS2411

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer VPS2411 Documents

Instruction Manual Series VPS Catalog Page More Info

Overview

Details for VPS2411

See catalog product page for full listing

Valve position sensor.

Series VPS Valve Position Sensor

Dual Inductive, 2-Wire AC/DC Sensor, Fully Adjustable Target in 2° Increments

The dual inductive, 2-wire AC/DC Series VPS Valve Position Sensors maintain VDI/ VDE 3845 dimensions so positioners can be easily mounted on top of the sensor and target. The Model VPS2411 Sensor and Model P1 Target mount easily and directly to actuators with ISO NAMUR topworks (see picture on catalog page). Solid state components are fully embedded in an epoxy resin to prevent condensation build-up and to protect against vibration and shock. The rugged PBTP housing provides excellent corrosion resistance and moisture protection.

Fully adjustable target in 2° increments
LED indication for visual indication
4-pin quick disconnect electrical connection

Specifications

Series: VPS Valve Position Sensor
Category/Type: Valves
Type: Position Indicators / Switches / Transmitters
Series: VPS Valve Position Sensor
Temperature Limits: -13 to 176°F (-25 to 80°C).
Power Requirements: 20-140 VAC (50/60 Hz); 10-200 VDC.
Enclosure Material: Polybutylene Terephthalate.
Switch Type: Dual normally open.
Electrical Rating: 200 mA.
Minimum Load Current: 5 mA.
Leakage Current: ≤0.8 mA.
Voltage Drop: ≤5.0 V.
Repeatability: ≤0.01 mm.
Hysteresis: 3-15% of sensing range.
Switching Frequency: 25 Hz.
Mounting Holes: NAMUR Mounting - 3.15" x 1.18" (80 x 30 mm) or 5.118" x 1.118" (130 x 30 mm).
Electrical Connection: 4-pin quick disconnect.
