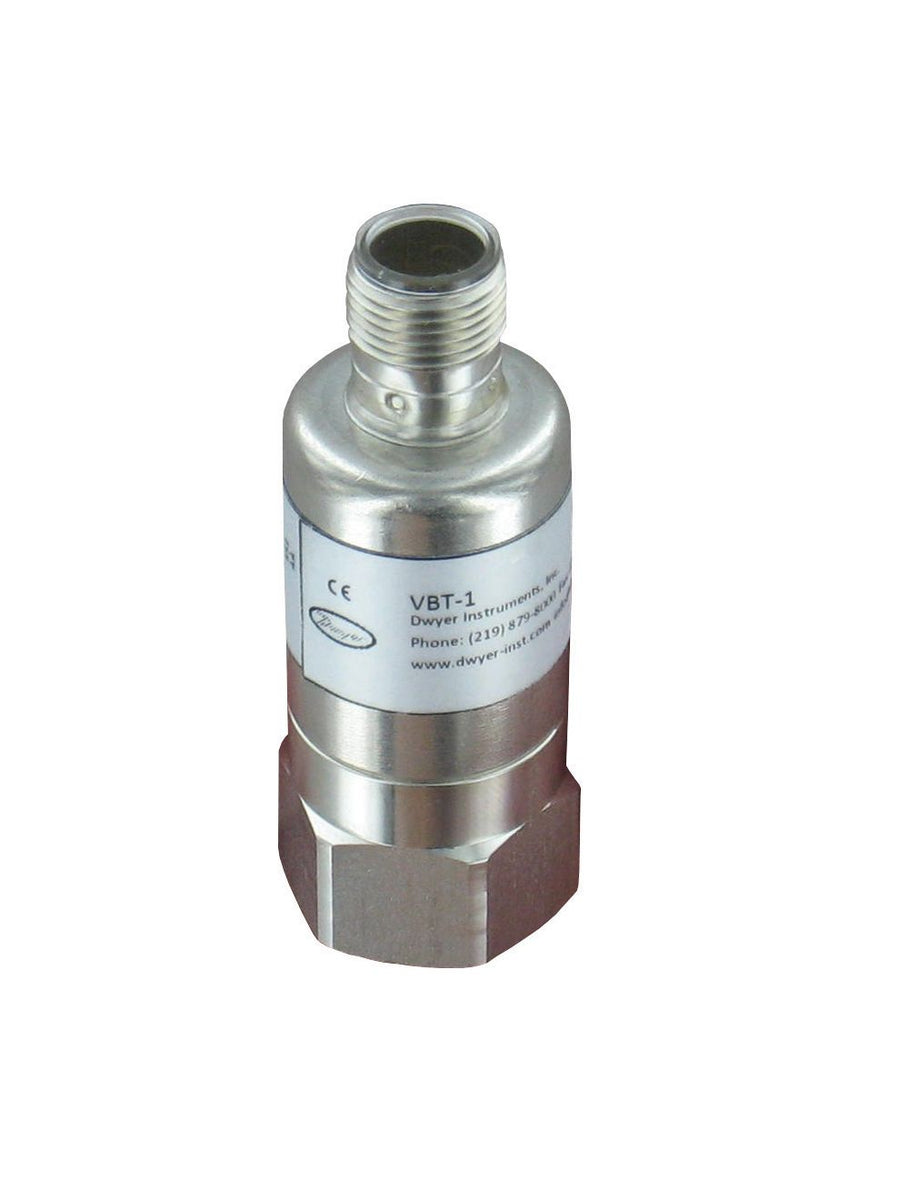

VBT-1 | Vibration transmitter | 4-20 mA output | Dwyer
Vibration transmitter, 4-20 mA output
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VBT-1
Documents and manuals
Dwyer VBT-1 Documents
Overview
Details for VBT-1
See catalog product page for full listing
Vibration transmitter | 4-20 mA output
MODEL VBT-1 VIBRATION TRANSMITTER
Continuous 4 to 20 mA Output Signal
The Model VBT-1 Vibration Transmitter continuously detects the vibration in a system and monitors for unusual operating conditions and potential failure. Vibration is converted into an analog signal at the current output. The VBT requires no setup and no software needed for configuration. The 2-wire loop power operation, combined with a standard M12 micro cable connector and interchangeable mounting studs (1/4"-28 UNF/M8 (2) or the 1/4"-28 UNF), makes for a fast and reliable installation.
Product Applications
- Motors
- Pumps
- Fans
- Engines
- Compressors
- Gearboxes
- Easy set-up and operating concept
- Stainless steel housing
- No software required
Specifications
- Temperature Limit
- -22 to 221°F (-30 to 105°C).
- Accuracy
- < ±3%.
- Connections
- M12 connector.
- Enclosure Rating
- NEMA 6 (IP68).
- Electrical Rating
- 9.6 to 32 VDC.
- Mounting Orientation
- Any position.
- Nonlinearity
- < ±0.25% of span.
- Frequency Range
- 10 to 1000 Hz.
- Output Signal
- 4 to 20 mA.
- Repeatability
- < 0.5%.
- Weight
- 0.28 lb (0.125 kg).
- Agency Approval
- CE.
