VBS-2 | Vibration switch | 0-50 mm/s Vrms range | Dwyer
Vibration switch, 0-50 mm/s Vrms range
Overview Details for VBS-2
Vibration switch | 0-50 mm/s Vrms range

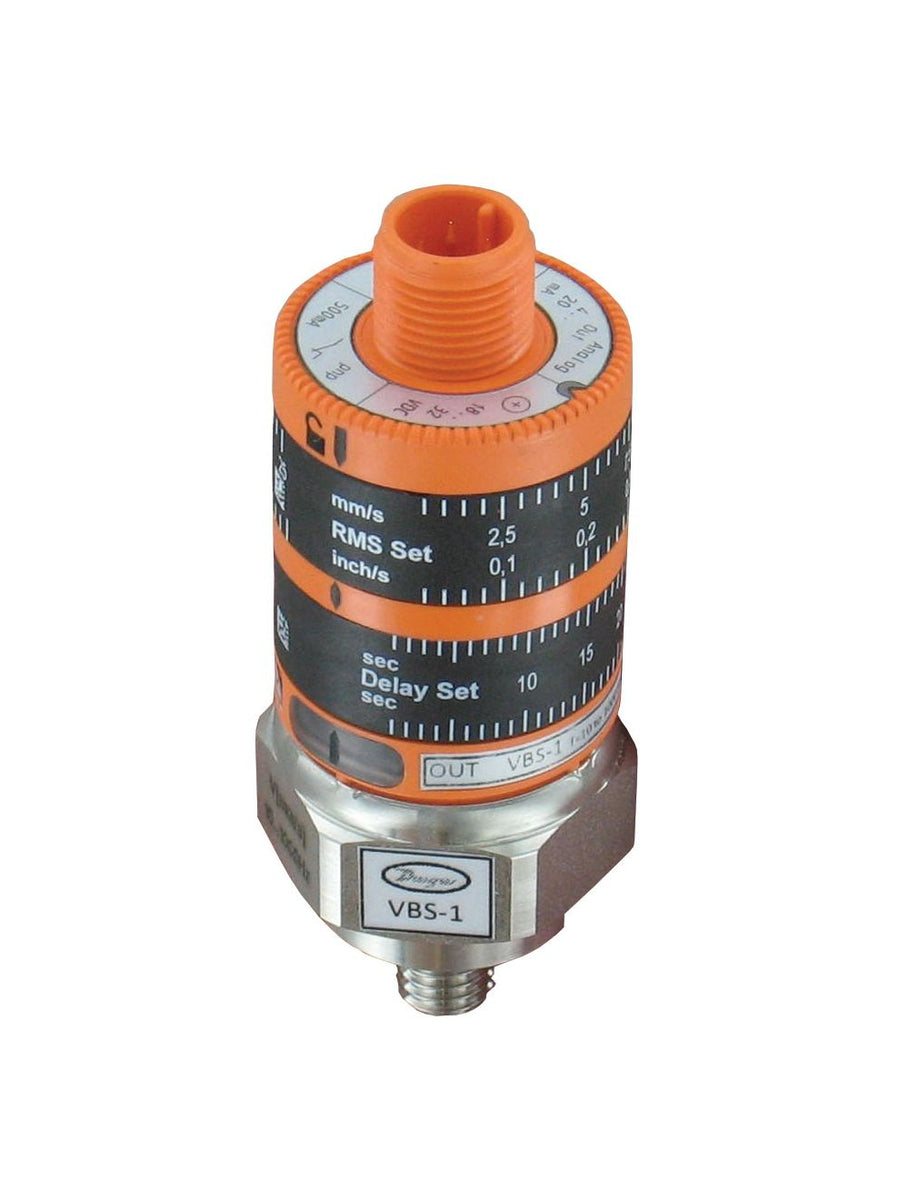

SERIES VBS VIBRATION SWITCH
The Series VBS Vibration Switch is small, compact, and uses two easy setup dials that adjust the maximum RMS velocity set point and false trip time delay. The Series VBS is intended to continuously monitor the changes in a machine’s vibration level. The VBS takes real-time RMS vibration input and provides an analog output of velocity as well as a switching output when an alarm value is exceeded.
Product Applications
- Vibration Monitoring for:
- Motors
- Pumps
- Fans
- Engines
- Compressors
- Centrifuges
- Generators
- Turbochargers
- Gearboxes
- Conveyors
- Easy set-up and operating concept
- 4 to 20 mA output
- No software required
- Adjustable switch and delay set point
Specifications
- Series
- VBS VIBRATION SWITCH
- Category/Type
- Process Control
- Type
- Vibration Control
- Series
- VBS VIBRATION SWITCH
- Housing Material
- PBT; PC; FPM; and 316 SS.
- Temperature Limit
- -22 to 221°F (-30 to 105°C).
- Accuracy
- < ±3%.
- Measuring Range
- 0 to 50 mm/s.
- Connections
- M12 connector.
- Enclosure Rating
- NEMA 6 (IP67).
- Electrical Rating
- 18 to 32 VDC.
- Mounting Orientation
- All.
- Nonlinearity
- < ±0.25% of span.
- Switch Output Range
- VBS-1: 0 to 25 mm/s Vrms;VBS-2: 0 to 50 mm/s Vrms.
- Analog Output Range
- 10 to 1000 Hz.
- Output Signal
- 4 to 20 mA.
- Switch Type
- PNP normally open (500 mA max).
- Switch Time Delay
- 1 to 60 seconds.
- Repeatability
- < 0.5%.
- Weight
- 0.25 lb (0.114 kg).
- Agency Approval
- CE.
