VB-03 | Volume booster | 4.98 Cv | 3/4" NPT in/out connection | aluminum | Dwyer
Volume booster, 4.98 Cv, 3/4" NPT in/out connection, aluminum

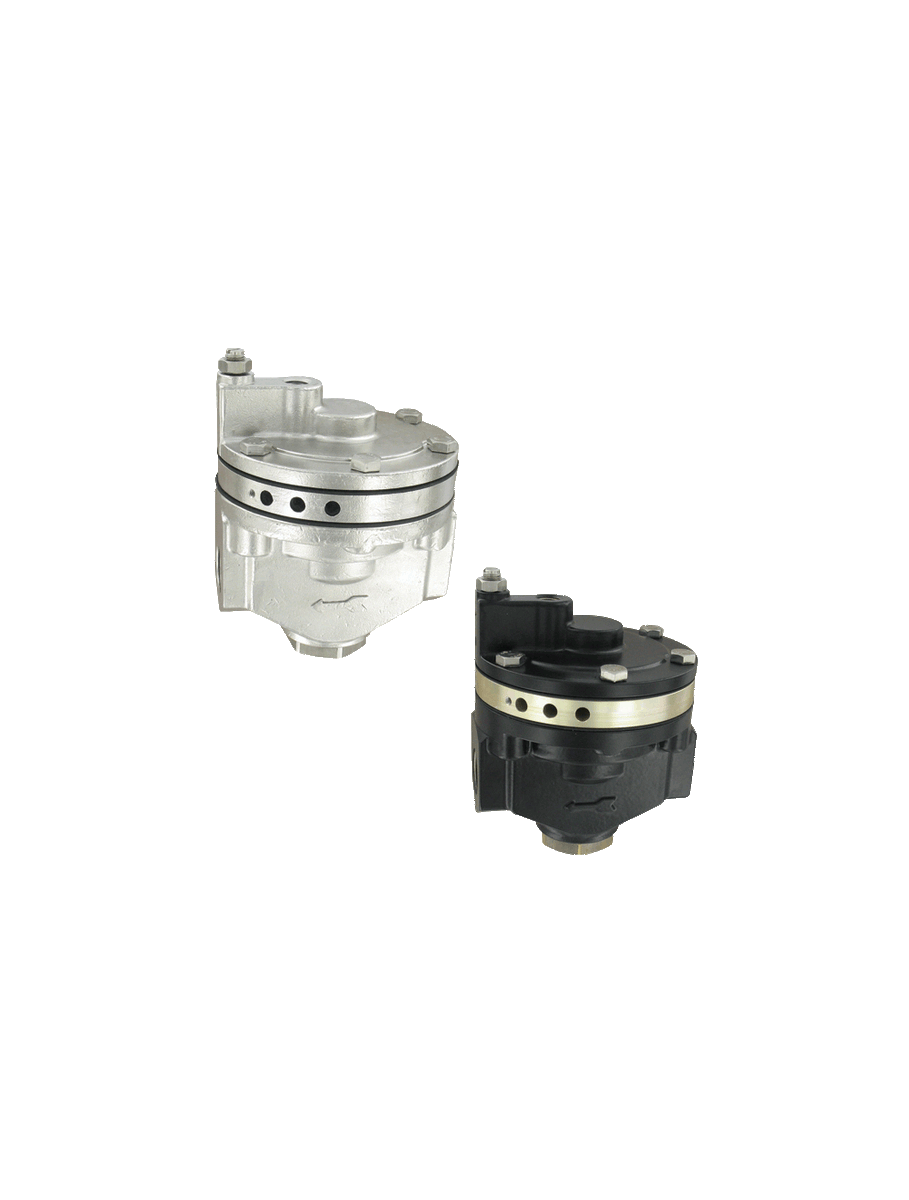

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VB-03
Documents and manuals
Dwyer VB-03 Documents
Overview
Details for VB-03
See catalog product page for full listing
Volume booster | 4.98 Cv | 3/4" NPT in/out connection | aluminum
SERIES VB VOLUME BOOSTERS
Economical, 1:1 Ratio
The Series VB Volume Boosters are a one to one signal to output relay and an ideal solution to increasing valve stroke speed. A large input signal change to the booster delivers high volume for quick throttling control. Volume booster responds to the slightest changes in input signal, which in turn increases accuracy of the output of air pressure to the actuator. This booster receives the positioner’s signal output and supplies the proper air pressure to theactuator to reduce response and adjustment time. Available in aluminum or stainless steel.
Product Applications
- Used with pneumatic control valves
- Responds to the slightest change in input signal
- Supplies constant air pressure at a 1:1 ratio
Specifications
- Series
- VB VOLUME BOOSTERS
- Category/Type
- Valves
- Type
- Volume Booster
- Series
- VB VOLUME BOOSTERS
- Service
- Air only.
- Wetted Materials
- Body: Aluminum or SS; Diaphragm: Nitrile elastomer.
- Max Supply Pressure
- 145 psi (10 bar).
- Max Signal/Output Pressure
- 101.5 psi (7 bar).
- Signal Connection
- 1/4" NPT.
- In/Output Pressure Ratio
- 1:1.
- Temperature Limits
- -4 to 158°F (-20 to 70°C).
- Linearity
- ±1% FS.
- In/Output Connection
- See model chart on catalog page.
- Weight
- See model chart on catalog page.
