VAT-314 | Variable area flowmeter | 1/4" female NPT | flow rate 500 ml/min (7.92 GPH). | Dwyer

Variable area flowmeter, 1/4" female NPT, flow rate 500 ml/min (7.92 GPH).

Brand: DwyerSKU: VAT-314

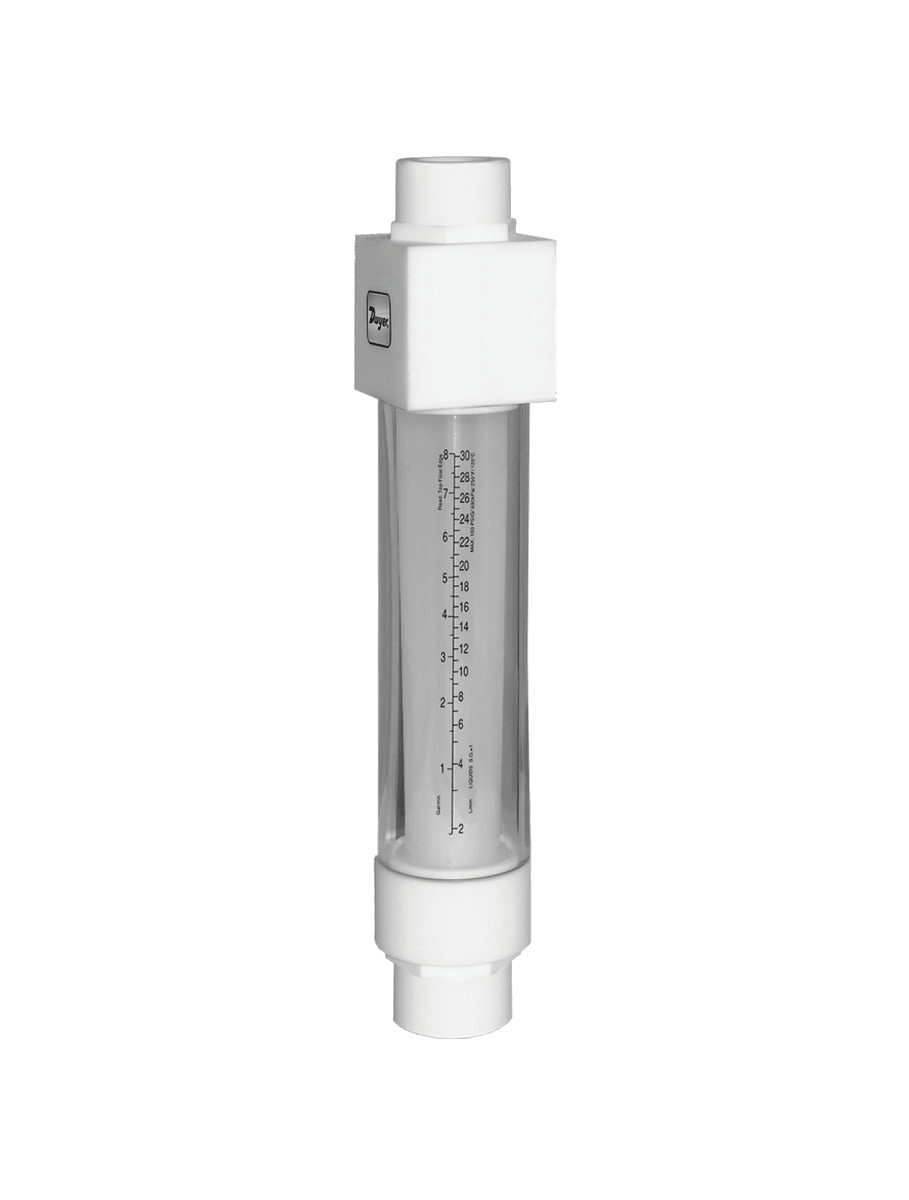

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VAT-314

Jump to: Overview & Specifications Reviews

Overview Details for VAT-314

See catalog product page for full listing

Variable area flowmeter | 1/4" female NPT | flow rate 500 ml/min (7.92 GPH).

Series VAT Variable Area Fluoropolymer Flowmeters

In-Line, Chemically Inert

The Series VAT Variable Area Fluoropolymer Flowmeter is ideal for high purity or corrosive liquid applications. This series of flowmeters features a 0 to 10 scale for flow indication. Each unit is individually leak tested to a leak integrity rating of 1 x 10^-7 sccs Helium or better.

Calibration Option is available in the Accessory tab.

Product Applications

Chemical injectors
Deionized water systems

Chemically inert wetted components yield long life even in corrosive liquid applications
All units are individually leak tested for no additional cost

Specifications

Series: VAT Variable Area Fluoropolymer Flowmeters
Category/Type: Flow
Type: Flowmeters
Series: VAT Variable Area Fluoropolymer Flowmeters
Service: Compatible liquids.
Wetted Materials: Flowtube: PFA; Float and end fittings: PTFE; Guide rods: PCTFE.
Temperature Limits: 250°F (121°C).
Pressure Limit: 100 psig (6.9 bar).
Accuracy: ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).
Process Connections: See model chart on catalog page.
Leak Integrity: 1 x 10-7 sccs of Helium.
Scale: Direct reading.
Mounting: Vertical; in-line.
