UV-B112 | Polysulfone flowmeter | range 2.5-28 SCFM (70-780 LPM) air. | Dwyer

Polysulfone flowmeter, range 2.5-28 SCFM (70-780 LPM) air.

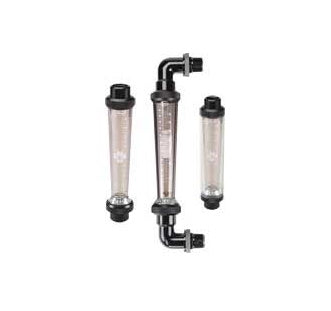

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to UV-B112

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer UV-B112 Documents

Instruction Manual Series UV Catalog Page More Info

Overview

Details for UV-B112

See catalog product page for full listing

Polysulfone flowmeter | range 2.5-28 SCFM (70-780 LPM) air.

Series UV Ultra-View™ Polysulfone Flowmeter

Monitor Water Flow Rates from .25 to 40 GPM, Air Rates from 1 to 100 SCFM

The Series UV Ultra-View™ Polysulfone Flowmeter is an ultra-pure, laboratory grade flowmeter with a dual scale that measures flow in GPM and LPM of water, air and other compatible media. The Series UV is designed to withstand high temperatures up to 212°F (100°C) and pressures up to 150 psi (10.34 bar).

Product Applications

Monitor chill water flow
Reverse osmosis systems
Deionized water systems
Potable water systems
Remediation applications

Corrosion-resistant polysulfone body ideal for applications where other flowmetersfail saving replacement cost and time
Easy to clean body yields low maintenance costs
Polycarbonate shield protects internal scale increasing product operating life
Low installation costs with optional panel mount polysulfone fittings

Specifications

Series: UV Ultra-View™ Polysulfone Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: UV Ultra-View™ Polysulfone Flowmeter
Service: Compatible liquids or gases.
Wetted Materials: Polysulfone body and fittings; fluoroelastomer O-rings and virgin PTFE float.
Temperature Limits: 35 to 212°F (2 to 100°C); 35 to 130°F (2 to 54°C) for PVC fitting option.
Pressure Limits: 150 psi (10.34 bar).
Accuracy: ±2% FS @ 70°F ±2°F (21.1°C) and 14.7 psia (in line connection rating only).
Repeatability: ±1% FS @ 70 ±2°F (21.1°C) and 14.7 psia (in line connection rating only).
Process Connections: 1" female NPT. Optional 90° polysulfone elbow - 1" male NPT.
Scale Length: 6" (152.40 mm) - 7" (177.80 mm); depending on model.
Fitting Torque: Maximum 22 ft lb.
Weight: 1 lb (457 g) (for 20 GPM range).
: CAUTION: Ball valves can have a "water cannon" effect on opening; creating pressure that exceeds the warranty ratings will damage the flowmeter. Series UV Flowmeters are for indoor use only or areas without direct sunlight. Polysulfone is adversely affected by ultraviolet light.
