UFM2-16 | Compact ultrasonic flowmeter | pulse and 4-20 mA outputs | 5 to 7" (125 to 180 mm) pipe | Dwyer
Compact ultrasonic flowmeter, pulse and 4-20 mA outputs, 5 to 7" (125 to 180 mm) pipe

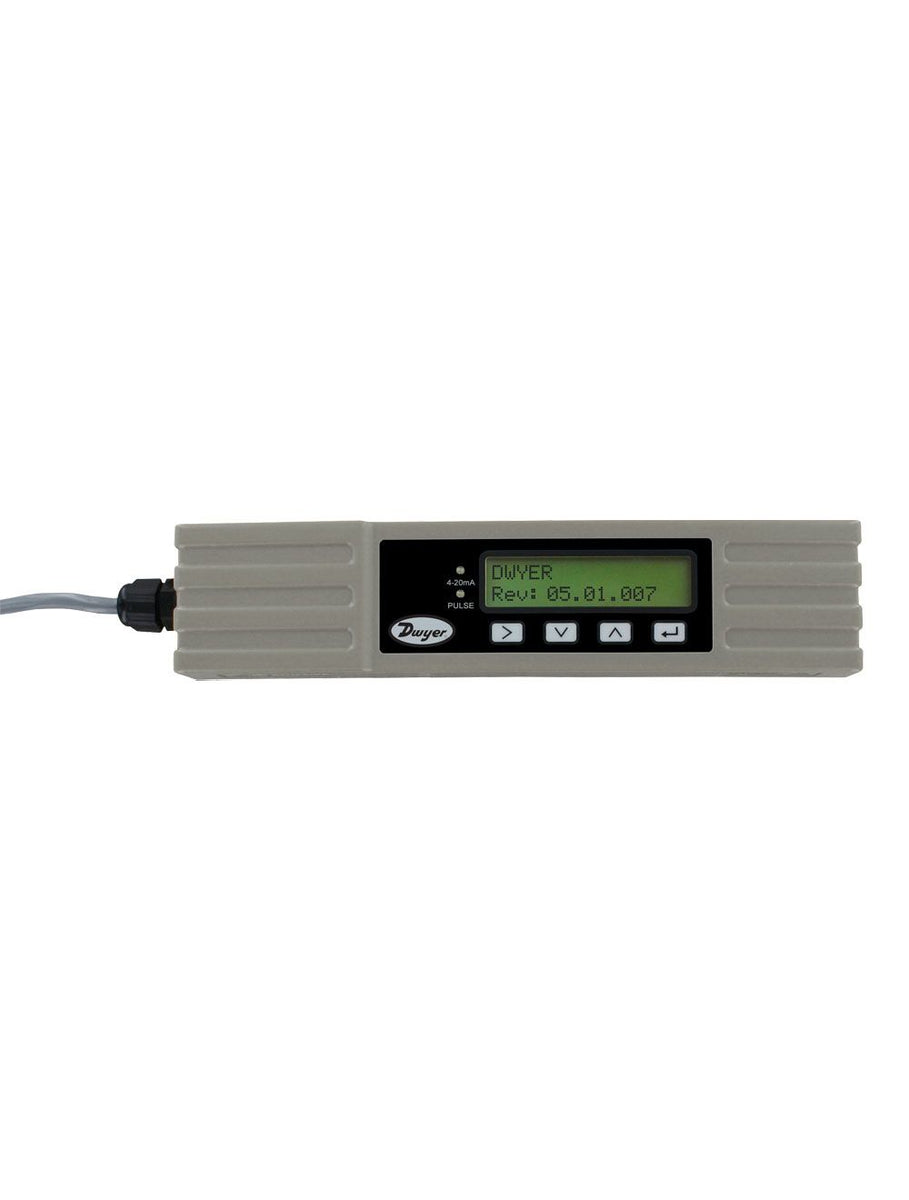

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to UFM2-16
Documents and manuals
Dwyer UFM2-16 Documents
Overview
Details for UFM2-16
See catalog product page for full listing
Compact ultrasonic flowmeter | pulse and 4-20 mA outputs | 5 to 7" (125 to 180 mm) pipe
Series UFM2 Compact Ultrasonic Flowmeters
Cost Effective, Compact and Adjustable Design, Non-Invasive
The Series UFM2 Compact Ultrasonic Flowmeters are economical, clamp-on,ultrasonic flowmeters. The UFM2 implements the transit-time difference to measureflow rates in pipes and can measure velocity and flow in pipes with outside diametersranging from 3/4 to 7" (25 to 180 mm). This model comes with a volume pulse and4-20 mA flow rate output.
KIT INCLUDES:
• Converter with adjustable guide rail
• Set of pipe clamps (model dependent)
• Set of small pipe adapter circle clamps
• Set of small pipe adapter V clamps
• Ultrasonic coupling grease
Product Applications
- Flow measurement for heat metering
- Metering and monitoring in: Chilled water, Potable water, Process water
- Save on installation costs with non-invasive pipe measurement
- Simplified installation with all necessary components included, such as converter, sensor, cables and mounting accessories
- Fit application requirements with compact and lightweight design, that can be easily installed, all in one clamp-on unit intended for homogeneous liquids that contain no air
- Cut down evaluation time with easy-to-read text displaying both flow rate and total with a convenient backlight for visual comfort
Specifications
- Series
- UFM2 Compact Ultrasonic Flowmeters
- Service
- Clean water with <3% by volume of particulate content.
- Range
- 0.33 to 32.8 ft/s (0.1 to 10 m/s).
- Display
- Backlit: 3.27" H x 0.74" W (83.1 mm x 18.8 mm); 2 line x 16 characters.
- Accuracy
- ±3% of flow reading for >0.98 ft/s (>0.3 m/s).
- Power Requirements
- 12-24 VDC/VAC.
- Power Consumption
- 7 W max.
- Temperature Limits
- Process: 32 to 185°F (0 to 85°C); Ambient: 32 to 122°F (0 to 50°C).
- Outputs
- Analog: 1 opto-isolated: 4-20 mA; Error current: 3.5 mA; Load resistance: 620 Ω max; Pulse: 1 optoisolatedMOSFET relay; 500 mA max; 166 pps max; 200 Hz max.
- Enclosure Rating
- IP54.
- Enclosure Material
- Plastic polycarbonate.
- Repeatability
- ±0.15% of measured value.
- Electrical Connections
- 16.4' (5 m) cable.
- Response Time
- <1 s.
- Weight
- 2.9 lb (1.315 kg).
- Agency Approvals
- CE.
- ADDITIONAL SPECIFICATIONS
- Applicable Pipe Material
- Steel; copper; or plastic.
- Pipe Outside Diameter
- 3/4 to 7" (25 to 180 mm). Pipe size is dependent on pipe material and internal diameter.
- Applicable Pipe Lining
- None.
- Pipe Wall Thickness
- 0.02 to 0.39" (0.5 to 10 mm).
