UFM2-14 | Compact ultrasonic flowmeter | pulse and 4-20 mA outputs | 3/4 to 4" (25 to 115 mm) pipe | Dwyer

Compact ultrasonic flowmeter, pulse and 4-20 mA outputs, 3/4 to 4" (25 to 115 mm) pipe

Dwyer | UFM2-14

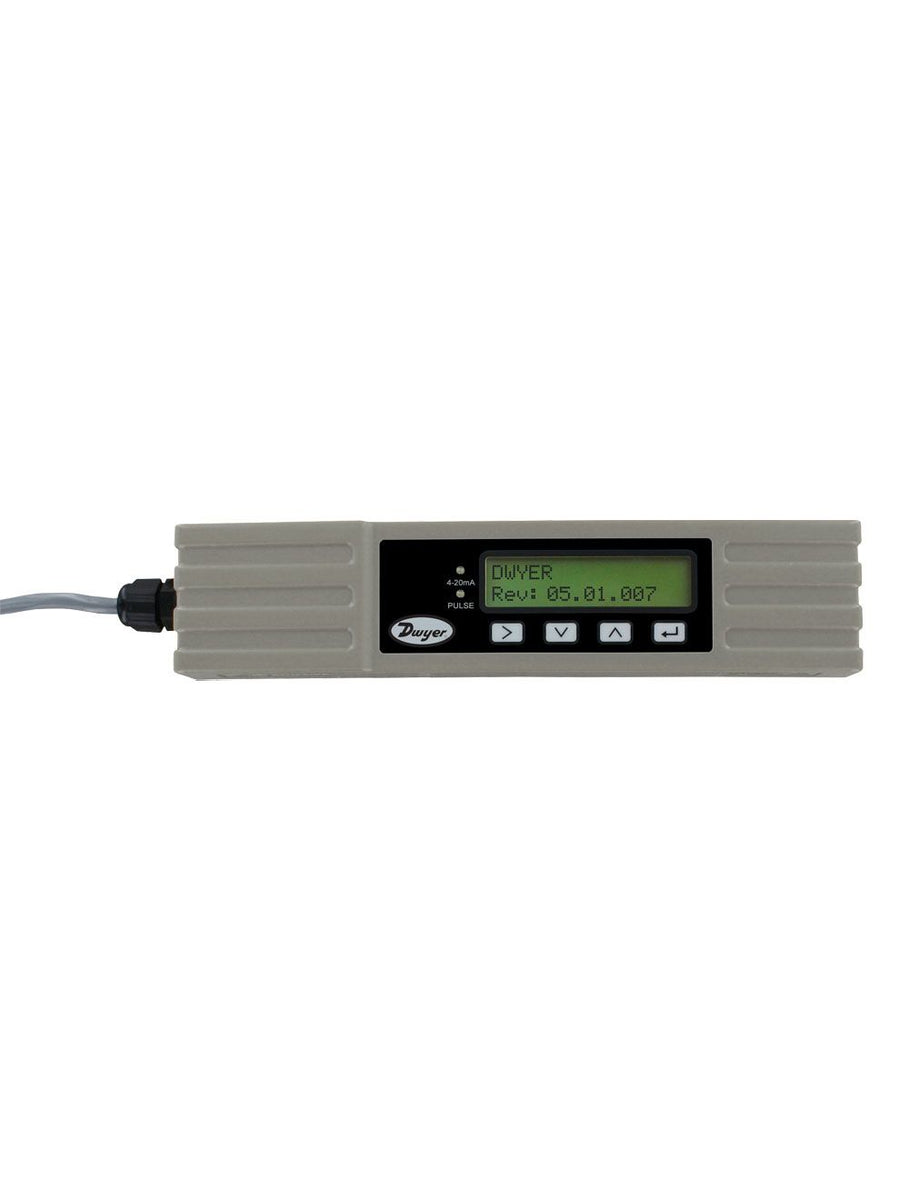

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to UFM2-14

Documents and manuals

Overview

Details for UFM2-14

See catalog product page for full listing

Compact ultrasonic flowmeter | pulse and 4-20 mA outputs | 3/4 to 4" (25 to 115 mm) pipe

Series UFM2 Compact Ultrasonic Flowmeters

Cost Effective, Compact and Adjustable Design, Non-Invasive

The Series UFM2 Compact Ultrasonic Flowmeters are economical, clamp-on,ultrasonic flowmeters. The UFM2 implements the transit-time difference to measureflow rates in pipes and can measure velocity and flow in pipes with outside diametersranging from 3/4 to 7" (25 to 180 mm). This model comes with a volume pulse and4-20 mA flow rate output.

KIT INCLUDES:
• Converter with adjustable guide rail
• Set of pipe clamps (model dependent)
• Set of small pipe adapter circle clamps
• Set of small pipe adapter V clamps
• Ultrasonic coupling grease

Product Applications

  • Flow measurement for heat metering
  • Metering and monitoring in: Chilled water, Potable water, Process water
  • Save on installation costs with non-invasive pipe measurement
  • Simplified installation with all necessary components included, such as converter, sensor, cables and mounting accessories
  • Fit application requirements with compact and lightweight design, that can be easily installed, all in one clamp-on unit intended for homogeneous liquids that contain no air
  • Cut down evaluation time with easy-to-read text displaying both flow rate and total with a convenient backlight for visual comfort

Specifications

Series
UFM2 Compact Ultrasonic Flowmeters
Service
Clean water with <3% by volume of particulate content.
Range
0.33 to 32.8 ft/s (0.1 to 10 m/s).
Display
Backlit: 3.27" H x 0.74" W (83.1 mm x 18.8 mm); 2 line x 16 characters.
Accuracy
±3% of flow reading for >0.98 ft/s (>0.3 m/s).
Power Requirements
12-24 VDC/VAC.
Power Consumption
7 W max.
Temperature Limits
Process: 32 to 185°F (0 to 85°C); Ambient: 32 to 122°F (0 to 50°C).
Outputs
Analog: 1 opto-isolated: 4-20 mA; Error current: 3.5 mA; Load resistance: 620 Ω max; Pulse: 1 optoisolatedMOSFET relay; 500 mA max; 166 pps max; 200 Hz max.
Enclosure Rating
IP54.
Enclosure Material
Plastic polycarbonate.
Repeatability
±0.15% of measured value.
Electrical Connections
16.4' (5 m) cable.
Response Time
<1 s.
Weight
2.9 lb (1.315 kg).
Agency Approvals
CE.
ADDITIONAL SPECIFICATIONS
Applicable Pipe Material
Steel; copper; or plastic.
Pipe Outside Diameter
3/4 to 7" (25 to 180 mm). Pipe size is dependent on pipe material and internal diameter.
Applicable Pipe Lining
None.
Pipe Wall Thickness
0.02 to 0.39" (0.5 to 10 mm).
